Lithium-ion Electric Forklifts

1.5–5 Ton Li-ion Forklift Manufacturer

HAMAC lithium-ion electric forklifts are high-efficiency electric counterbalance forklifts designed for warehouses, factories, logistics centers, distribution facilities and multi-shift material handling operations. The lithium-ion battery system supports fast charging and opportunity charging, allowing operators to recharge the forklift during breaks, shift changes or available downtime without waiting for a complete battery discharge.

Compared with a conventional lead-acid battery forklift, a lithium-ion electric forklift requires no regular battery watering, acid checking or battery changing. The integrated battery management system helps monitor battery status and supports safe, stable operation. HAMAC lithium battery forklifts can be configured with 3-wheel or 4-wheel chassis, duplex or triplex mast options, side shifters, fork positioners, non-marking tires, safety lights, onboard chargers and other configurations for different material handling requirements.

Rated Capacity: 1.5–5.0 Tons

Battery System: High-performance Lithium-ion Battery with BMS

Max. Lift Height: Up to 7000 mm

Lithium-ion Electric-Technical Specifications Overview

Get a Quote → Ask for Details →

HAMAC lithium-ion electric forklifts are available from 1.5 tons to 5 tons. The 1.5T, 1.8T and 2T lithium forklift models are suitable for narrow aisle warehouses, packaging plants, food and beverage distribution, retail logistics and light manufacturing. The 2.5T, 3T and 3.5T lithium-ion forklifts are suitable for standard factory handling, loading docks, distribution centers, production-line material supply and medium-duty pallet transport.

The 4T and 5T lithium-ion electric forklifts are designed for heavier industrial loads, including building materials, paper rolls, metal components, machinery parts and large palletized goods. Customers can select the forklift capacity, lift height, battery capacity, charger type, tire type and attachments according to load weight, load center, operating hours, working shifts, warehouse aisle width and available charging power.

Product Advantages

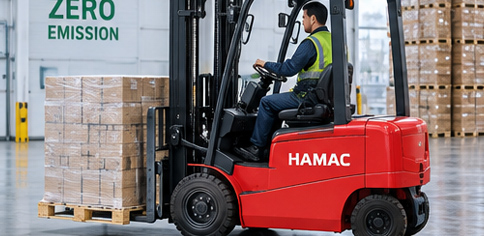

01 Zero-Emission Operation

Electric forklifts produce no exhaust emissions during operation, making them suitable for warehouses, factories, food and beverage facilities, distribution centers, packaging plants and other indoor material handling environments. They help customers maintain cleaner working areas while supporting daily pallet transport, loading and stacking tasks.

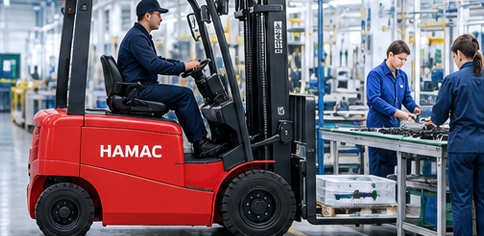

02 Low Noise for Indoor Work

The electric drive system operates with lower noise than conventional internal combustion forklifts. This improves operator comfort and is particularly valuable in enclosed warehouses, production workshops, retail distribution facilities and locations where noise control is important.

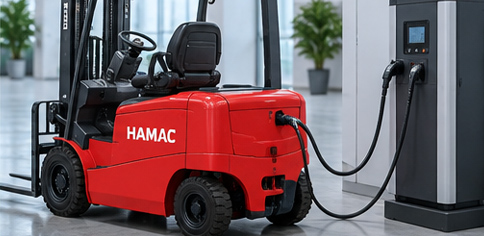

03 Flexible Battery Solutions

HAMAC electric forklifts can be configured with conventional lead-acid batteries or lithium-ion battery systems. Lead-acid battery options are suitable for standard operations and budget-focused projects, while lithium-ion forklifts support fast charging and opportunity charging for high-frequency and multi-shift material handling applications.

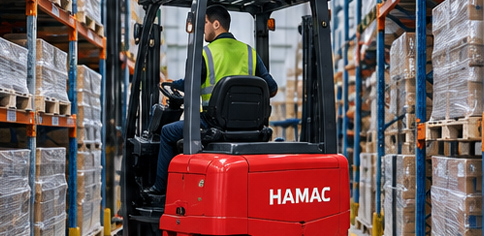

04 Compact and Maneuverable Design

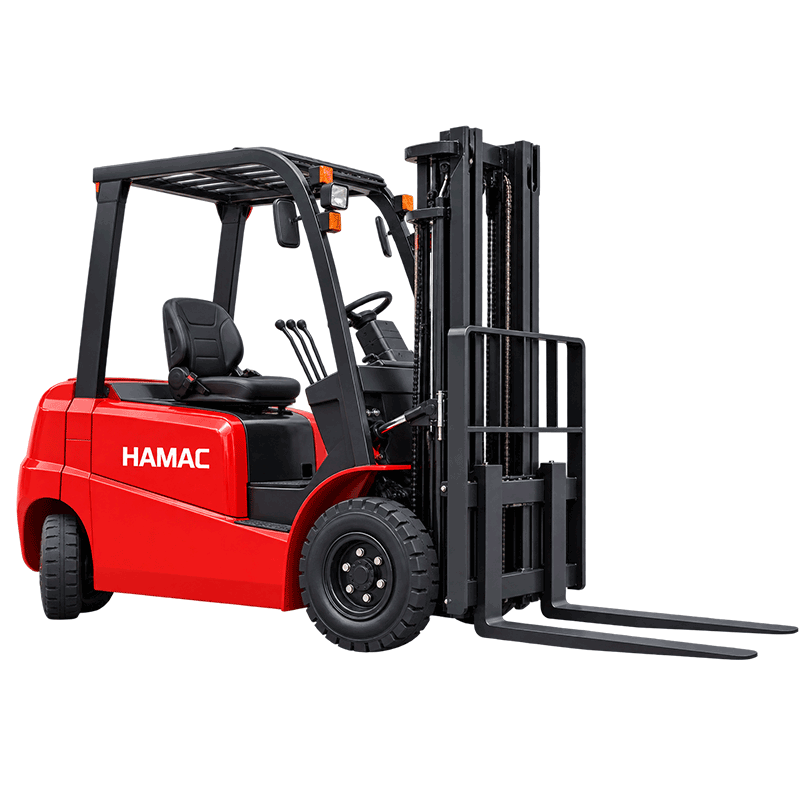

Electric forklifts are available in both 3-wheel and 4-wheel configurations. Three-wheel electric forklifts offer a small turning radius for narrow aisles and compact warehouses, while four-wheel electric forklifts provide stable handling for factories, loading docks and general indoor-outdoor operations on level ground.

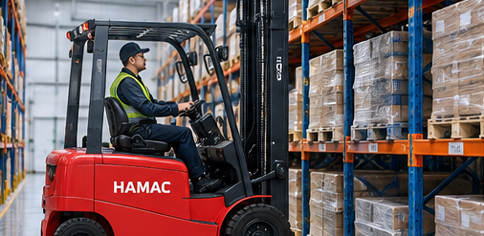

05 High Visibility and Precise Control

A high-visibility mast, ergonomic operator compartment and responsive electric control system help operators position forks accurately and handle pallets with confidence. This improves efficiency during truck loading, rack storage, production-line supply and repetitive warehouse handling tasks.

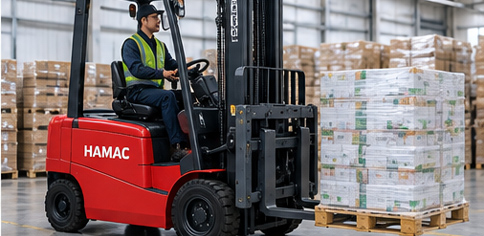

06 Configurable for Different Applications

HAMAC electric forklifts can be equipped with different mast heights, duplex or triplex full free lift masts, side shifters, fork positioners, fork extensions, solid tires, non-marking tires, safety lights, cameras and other attachments. This allows customers to configure the forklift for pallet dimensions, rack heights, aisle widths, operating hours and specific material handling requirements.

Compatible Attachments

Rallet fork

Bucket

Crane Arm

Mixed barrel

Bale Fork

Snow Blower

Grapple Bucket

Mixed Bucket

Road Sweeper

Mixed barrel

Crass Cutter

Application Scenarios

Construction Sites

Agriculture & Farming

Industrial Logistics

Municipal Works

Mining & Energy

Technical Specifications

Item	Unit	FL15	FL18	FL20	FL25	FL30	FL35	FL40	FL50
General
Model	-	FL15	FL18	FL20	FL25	FL30	FL35	FL40	FL50
Power Type	-	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery
Operator Type	-	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Chassis Type	-	3-Wheel / 4-Wheel Optional	3-Wheel / 4-Wheel Optional	3-Wheel / 4-Wheel Optional	4-Wheel	4-Wheel	4-Wheel	4-Wheel	4-Wheel
Rated Capacity	kg	1500	1800	2000	2500	3000	3500	4000	5000
Load Center	mm	500	500	500	500	500	500	500	500
Tire Type	-	Solid / Non-marking Optional	Solid / Non-marking Optional	Solid / Non-marking Optional	Solid / Pneumatic / Non-marking Optional	Solid / Pneumatic / Non-marking Optional	Solid / Pneumatic / Non-marking Optional	Solid / Pneumatic Optional	Solid / Pneumatic Optional
Mast and Forks
Standard Lift Height	mm	3000	3000	3000	3000	3000	3000	3000	3000
Optional Lift Height	mm	3000-6000	3000-6000	3000-6500	3000-6500	3000-6500	3000-6500	3000-7000	3000-7000
Mast Type	-	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex
Free Lift	mm	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Mast Tilt Angle, Forward / Backward	deg	5 / 7	5 / 7	5 / 7	5 / 7	5 / 7	5 / 7	5 / 7	5 / 7
Fork Dimensions, L × W × T	mm	920 × 100 × 35	920 × 100 × 35	1070 × 100 × 40	1070 × 122 × 40	1070 × 122 × 45	1070 × 122 × 45	1220 × 150 × 50	1220 × 150 × 50
Fork Carriage Class	-	IIA	IIA	IIA	IIA	IIIA	IIIA	IIIA	IIIA
Performance
Travel Speed, Laden / Unladen	km/h	15 / 18	15 / 18	15 / 18	16 / 18	16 / 18	16 / 18	15 / 17	15 / 17
Lifting Speed, Laden / Unladen	m/s	0.40 / 0.50	0.40 / 0.50	0.40 / 0.50	0.40 / 0.50	0.40 / 0.50	0.40 / 0.50	0.35 / 0.45	0.35 / 0.45
Lowering Speed, Laden / Unladen	m/s	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50
Max. Gradeability, Laden / Unladen	%	15 / 20	15 / 20	15 / 20	15 / 20	15 / 20	15 / 20	12 / 15	12 / 15
Drive System
Drive Motor Type	-	AC Drive Motor	AC Drive Motor	Dual AC Drive Motor	Dual AC Drive Motor	Dual AC Drive Motor	Dual AC Drive Motor	Dual AC Drive Motor	Dual AC Drive Motor
Drive Motor Power	kW	8	8	10	10	2 × 8	2 × 8	2 × 10	2 × 12
Lift Motor Power	kW	10	10	12	12	15	15	20	25
Controller	-	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional	Curtis / ZAPI Optional
Steering Type	-	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering
Lithium-ion Battery and Charger
Battery Type	-	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery
Battery Voltage	V	48 / 80	48 / 80	48 / 80	80	80	80	80	80
Battery Capacity	Ah	202	202	202	202	272	404	To Be Confirmed	To Be Confirmed
Charging Method	-	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging	Fast Charging / Opportunity Charging
Charging Time	h	1.5-3	1.5-3	1.5-3	1.5-3	1.5-3	1.5-3	To Be Confirmed	To Be Confirmed
Battery Management System	-	BMS Included	BMS Included	BMS Included	BMS Included	BMS Included	BMS Included	BMS Included	BMS Included
Charger Type	-	External / On-board Optional	External / On-board Optional	External / On-board Optional	External / On-board Optional	External / On-board Optional	External / On-board Optional	External / On-board Optional	External / On-board Optional
Optional Configurations
Available Options	-	3-Wheel or 4-Wheel Chassis, Duplex Mast, Triplex Full Free Lift Mast, Side Shifter, Fork Positioner, Fork Extensions, Solid Tires, Pneumatic Tires, Non-marking Tires, On-board Charger, Dual Charging Ports, Blue Safety Light, Red Zone Warning Light, Rear Working Light, Camera System, Cold Storage Package, Full Cabin and Fleet Management System

Product Overview Product Advantages Compatible Attachments Application Scenarios Technical Specifications

Free Consultation →

Common FAQs

What is a lithium-ion electric forklift? −

A lithium-ion electric forklift is a battery-powered counterbalance forklift that uses a lithium-ion battery instead of a conventional lead-acid battery. It is designed for warehouse, factory, logistics, and distribution applications where customers need efficient material handling, fast charging, and reduced battery maintenance.

What capacities are available for HAMAC lithium-ion electric forklifts? +

HAMAC lithium-ion electric forklifts are available from 1.5 tons to 5 tons. The product range includes 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, and 5 ton lithium battery forklift configurations. The appropriate capacity should be selected according to actual load weight, load center, lift height, attachment weight, and working conditions.

What is the difference between a lithium-ion forklift and a lead-acid battery forklift? +

A lithium-ion forklift can support fast charging and opportunity charging, while lead-acid batteries normally require longer planned charging periods. Lithium-ion batteries do not require routine watering or acid maintenance, and they can help reduce downtime in high-frequency operations. Lead-acid batteries may still be suitable for customers with standard single-shift work and a lower initial purchasing budget.

What is opportunity charging for a lithium-ion forklift? +

Opportunity charging means charging a lithium-ion electric forklift during short breaks, lunch periods, shift changes, or other available downtime. Unlike conventional lead-acid batteries, lithium-ion batteries can generally be charged without requiring a full discharge cycle first. This can help keep a lithium forklift available for longer working periods.

How long does it take to charge a lithium-ion forklift battery? +

Charging time depends on battery voltage, battery capacity, state of charge, charger output, and site power supply. Typical fast charging for a lithium-ion forklift may take approximately 1.5 to 3 hours. HAMAC can recommend a suitable charger after confirming the customer’s working shifts, daily operating hours, and available electrical supply.

Can HAMAC lithium-ion electric forklifts work multiple shifts? +

Yes. A lithium-ion electric forklift is suitable for multi-shift operations when the battery capacity and charging arrangement are correctly selected. Fast charging and opportunity charging allow the forklift to be recharged during scheduled breaks, which can reduce the need for battery changing and help improve equipment utilization.

Can a lithium-ion electric forklift be used in narrow aisles? +

Yes. HAMAC can provide 3-wheel lithium-ion electric forklift configurations for narrow aisle warehouses and compact factory layouts. A 3-wheel lithium forklift has a smaller turning radius and is suitable for customers who need flexible pallet handling in restricted spaces. For heavier loads or more stable handling, a 4-wheel lithium-ion electric forklift is recommended.

What lift height is available for a lithium battery forklift? +

HAMAC lithium-ion electric forklifts can be equipped with duplex and triplex mast options. Typical lift heights range from 3000 mm to 7000 mm depending on the model, battery system, mast type, and residual capacity requirement. Full free lift mast options can be considered for container handling, low-ceiling warehouses, and high-rack storage.

What attachments are available for lithium-ion electric forklifts? +

Available lithium forklift attachments can include side shifters, fork positioners, fork extensions, carton clamps, bale clamps, paper roll clamps, drum handlers, and other material handling attachments. Before selecting an attachment, customers should confirm the attachment weight, load center, and required residual capacity at the planned lift height.

What information is needed to select a lithium-ion electric forklift? +

Please provide the required capacity, load center, maximum lift height, pallet size, aisle width, floor condition, daily working hours, number of shifts, available charging voltage, preferred charging time, attachment requirements, quantity, and destination country. HAMAC can recommend a suitable lithium-ion electric forklift model, battery capacity, charger, mast type, tire option, and safety configuration.
