Diesel Forklifts

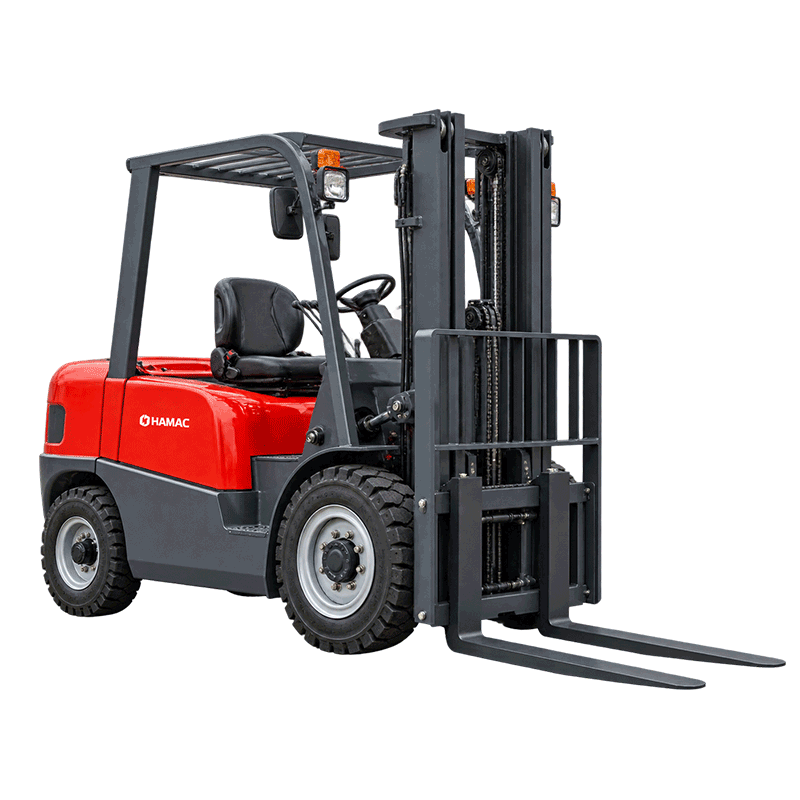

1.5–10 Ton Diesel Counterbalance Forklift

HAMAC diesel forklifts are reliable internal combustion counterbalance forklifts designed for factories, warehouses, loading docks, construction material yards, timber yards, ports and outdoor industrial handling operations. With strong diesel engine power, durable chassis structures and pneumatic tire options, these diesel forklift trucks provide practical handling performance for palletized cargo, building materials, machinery parts, steel products, timber, containers and other industrial loads.

Our diesel forklift range can be configured with different engines, mast heights, tire types, fork lengths, cabins and material handling attachments according to the customer’s application. Optional side shifters, fork positioners, long forks, full cabins, air conditioners, heaters, warning lights and camera systems help adapt each diesel counterbalance forklift to warehouse, factory, yard and heavy-duty material handling requirements.

Capacity: 1.5–10 Tons

Lift Height: Up to 6m

Power System: Reliable Diesel Engine Options

Diesel Forklifts-Technical Specifications Overview

Get a Quote → Ask for Details →

HAMAC diesel forklifts are available in capacities from 1.5 tons to 10 tons. The 1.5T, 1.8T and 2T diesel forklifts are suitable for general pallet handling, small factories, warehouses, workshops and loading areas. The 2.5T, 3T and 3.5T diesel forklift models are widely used for truck loading and unloading, factory logistics, building material warehouses, timber yards, distribution centers and outdoor handling applications.

For larger industrial loads, HAMAC offers 4T, 5T, 6T, 7T, 8T and 10T diesel forklifts for steel products, stone, marble, precast concrete, machinery components, large pallets and heavy cargo. The right diesel forklift should be selected based on load weight, load center, lift height, operating surface, tire requirement, daily working hours, attachment weight, fuel preference and required residual capacity.

Product Advantages

01 Powerful Engine Performance

HAMAC internal combustion forklifts are available with diesel, LPG, gasoline and dual-fuel power options to match different operating requirements. Diesel forklifts provide strong torque for heavy loads and outdoor work, while LPG and gasoline forklifts offer flexible performance for factory, loading dock and mixed indoor-outdoor applications with suitable ventilation. IC forklift power systems are designed to deliver stable travel performance, responsive lifting and dependable operation during continuous material handling tasks.

02 Fast Refueling for Continuous Work

Internal combustion forklifts can be refueled quickly, helping customers reduce downtime during long shifts and high-frequency handling operations. Diesel tanks can be refilled efficiently, while LPG cylinders can be replaced quickly when fuel is available on site. This makes diesel, LPG and dual-fuel forklifts a practical choice for rental fleets, logistics yards, busy loading areas and operations that cannot wait for battery charging.

03 Built for Outdoor and Heavy-Duty Applications

With durable frames, powerful engines, high ground clearance and robust drive systems, HAMAC internal combustion forklifts are suitable for industrial yards, construction material storage, timber yards, factories, ports and outdoor logistics areas. They can handle demanding work involving building materials, machinery parts, steel products, timber, palletized cargo and other heavy industrial loads.

04 Pneumatic Tire Options for Uneven Ground

HAMAC diesel and LPG forklifts can be equipped with pneumatic tires for better traction and stability on paved yards, loading areas and uneven outdoor surfaces. This configuration is especially suitable for construction sites, lumber yards, agricultural facilities, ports and industrial areas where a standard warehouse electric forklift may not be the best choice. Pneumatic-tire IC forklifts are widely used where ground clearance, durability and outdoor mobility are important.

05 Configurable Fuel, Mast and Attachment Solutions

Customers can choose diesel, LPG, gasoline or dual-fuel forklift configurations based on fuel availability, operating hours, emissions requirements and working environment. HAMAC can also provide duplex or triplex masts, full free lift options, side shifters, fork positioners, fork extensions, cabins, air conditioners, warning lights and specialized attachments to match pallet sizes, rack heights and handling tasks. Industry IC models commonly offer diesel, LPG or dual-fuel versions within comparable 2.0–3.5T capacity classes.

06 Durable Design and Operator Comfort

HAMAC internal combustion forklifts are designed for long operating hours with an ergonomic operator area, clear forward visibility, practical controls and service-friendly component access. Heavy-duty cooling, reliable drivetrain components and reinforced chassis configurations help support stable operation in hot, dusty and demanding work environments. Contemporary diesel/LPG forklift designs commonly combine enhanced cooling, wet-disc brake axles, ergonomic cabins and durable powertrain components to improve uptime and serviceability.

Compatible Attachments

Rallet fork

Bucket

Crane Arm

Mixed barrel

Bale Fork

Snow Blower

Grapple Bucket

Mixed Bucket

Road Sweeper

Mixed barrel

Crass Cutter

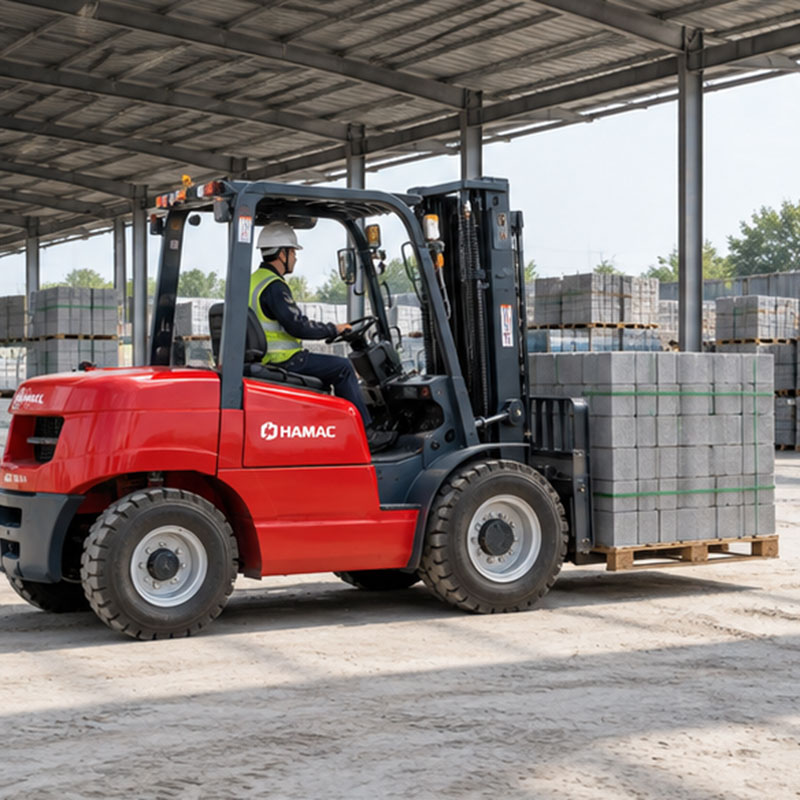

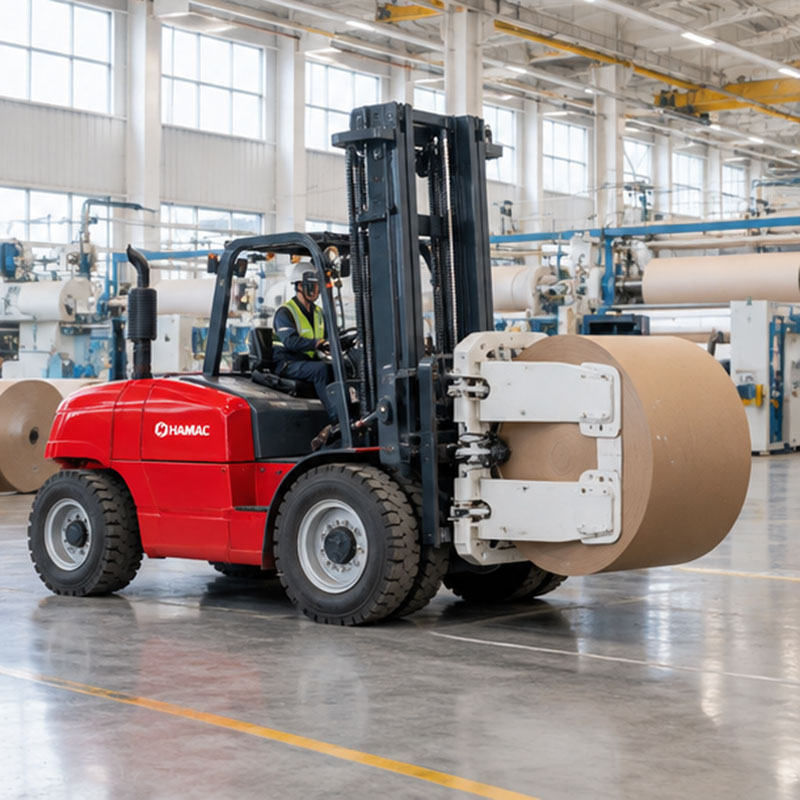

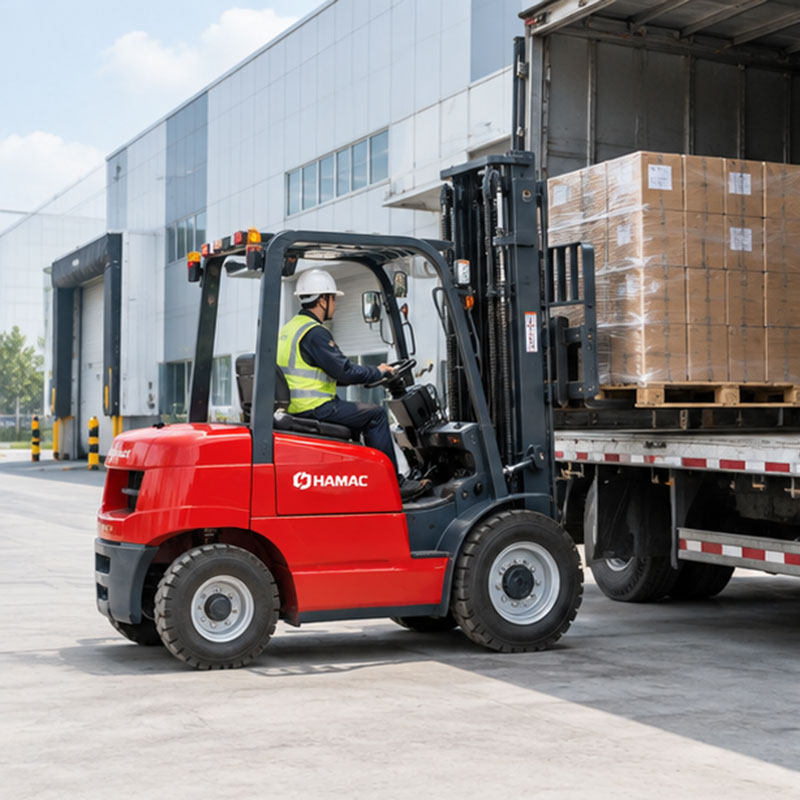

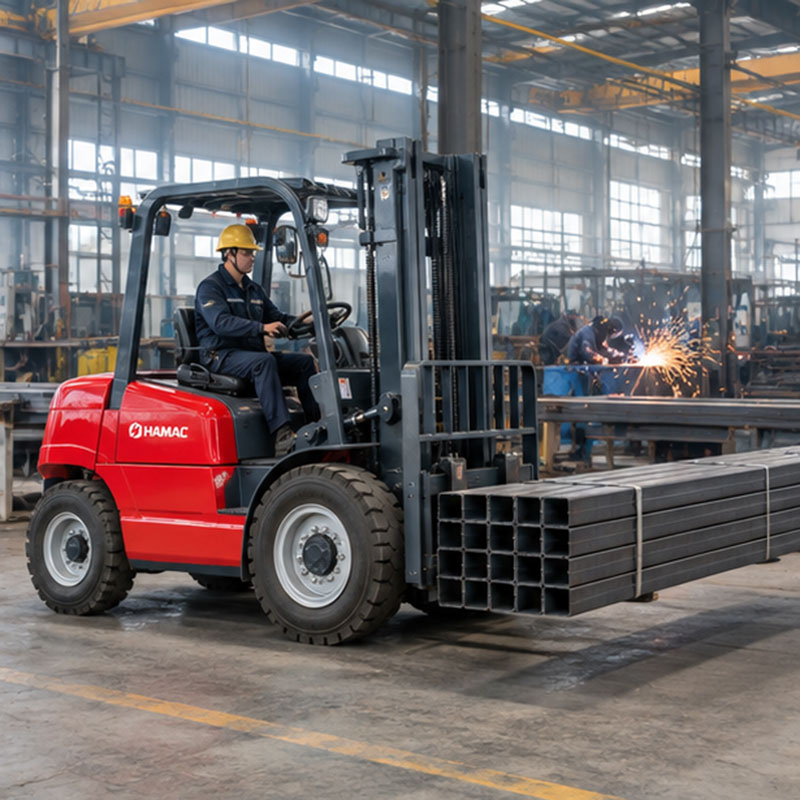

Application Scenarios

Construction Sites

Agriculture & Farming

Industrial Logistics

Municipal Works

Mining & Energy

Technical Specifications

Item	Unit	FD15	FD18	FD20	FD25	FD30	FD35	FD50	FD70	FD100
General
Model	-	FD15	FD18	FD20	FD25	FD30	FD35	FD50	FD70	FD100
Power Type	-	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operator Type	-	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Chassis Type	-	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance
Rated Capacity	kg	1500	1800	2000	2500	3000	3500	5000	7000	10000
Load Center	mm	500	500	500	500	500	500	600	600	600
Tire Type	-	Pneumatic / Solid Optional	Pneumatic / Solid Optional	Pneumatic / Solid Optional	Pneumatic / Solid Optional	Pneumatic / Solid Optional	Pneumatic / Solid Optional	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire
Number of Wheels, Front / Rear	-	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2
Mast and Forks
Standard Lift Height	mm	3000	3000	3000	3000	3000	3000	3000	3000	3000
Optional Lift Height	mm	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000
Mast Type	-	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex
Free Lift	mm	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Mast Tilt Angle, Forward / Backward	deg	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12
Fork Dimensions, L × W × T	mm	920 × 100 × 35	920 × 100 × 35	1070 × 100 × 40	1070 × 122 × 40	1070 × 122 × 45	1070 × 122 × 45	1220 × 150 × 50	1220 × 150 × 60	1520 × 200 × 80
Fork Carriage Class	-	IIA	IIA	IIA	IIA	IIIA	IIIA	IIIA	IIIB	IV
Dimensions
Wheelbase	mm	1400	1400	1600	1600	1700	1700	2300	2300	2775
Overall Length without Forks	mm	2245	2245	2450	2450	2700	2700	3485	3645	4202
Overall Width	mm	1170	1170	1200	1200	1250	1250	2045	2045	2165
Overhead Guard Height	mm	2035	2035	2100	2100	2150	2150	2450	2450	2560
Min. Ground Clearance under Mast	mm	110	110	120	120	135	135	180	180	200
Min. Outside Turning Radius	mm	1955	1955	2200	2200	2450	2450	3225	3340	3940
Performance
Travel Speed, Laden / Unladen	km/h	14.5 / 14.5	14.5 / 14.5	15 / 15	15 / 15	18 / 18	18 / 18	26 / 26	26 / 26	26 / 26
Lifting Speed, Laden / Unladen	mm/s	500 / 530	500 / 530	480 / 520	480 / 520	460 / 500	460 / 500	400 / 450	380 / 420	350 / 400
Lowering Speed, Laden / Unladen	mm/s	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500
Max. Gradeability, Laden	%	21	21	20	20	20	20	25	25	20
Engine and Transmission
Engine Type	-	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine	Diesel Engine
Engine Brand Options	-	Xinchai / Kubota / Isuzu Optional	Xinchai / Kubota / Isuzu Optional	Xinchai / Kubota / Isuzu Optional	Xinchai / Kubota / Isuzu Optional	Xinchai / Kubota / Isuzu Optional	Xinchai / Kubota / Isuzu Optional	Xinchai / Cummins / Isuzu Optional	Cummins / Isuzu Optional	Cummins / Isuzu Optional
Rated Engine Power	kW	33.1	33.1	36	36	45	45	55	55	80
Transmission Type	-	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Hydraulic Transmission	Hydraulic Transmission	Hydraulic Transmission
Fuel Tank Capacity	L	30	30	50	50	60	60	90	140	160
Optional Configurations
Available Options	-	Stage III / Stage V Engine Options, Pneumatic Tires, Solid Tires, Duplex Mast, Triplex Full Free Lift Mast, Side Shifter, Fork Positioner, Fork Extensions, Long Forks, Full Cabin, Air Conditioner, Heater, Blue Safety Light, Red Zone Warning Light, Rear Working Light, Camera System, Fire Extinguisher, Weighing System and Customized Attachments

Product Overview Product Advantages Compatible Attachments Application Scenarios Technical Specifications

Free Consultation →

Common FAQs

What is a diesel forklift? −

A diesel forklift is an internal combustion counterbalance forklift powered by a diesel engine. It is commonly used for pallet handling, truck loading, warehouse operations, factory logistics, construction materials, timber, steel, machinery parts, and outdoor industrial work. HAMAC diesel forklifts are designed for customers who need reliable power, fast refueling, and durable handling performance.

What diesel forklift capacities are available from HAMAC? +

HAMAC diesel forklifts are available from 1.5 tons to 10 tons. The main capacity range includes 1.5T, 1.8T, 2T, 2.5T, 3T, 3.5T, 5T, 7T, and 10T diesel forklift models. The final model should be selected according to load weight, load center, lift height, attachment weight, working surface, and required residual capacity.

Which diesel forklift is suitable for general warehouse and factory work? +

A 2.5 ton diesel forklift, 3 ton diesel forklift, or 3.5 ton diesel forklift is commonly selected for general factory logistics, loading and unloading trucks, outdoor warehouse yards, building material storage, and pallet handling. For smaller loads and compact working areas, a 1.5 ton or 2 ton diesel forklift may be suitable. HAMAC can recommend a model after reviewing the actual working conditions.

Can a diesel forklift be used outdoors? +

Yes. A diesel forklift is well suited to outdoor applications because it offers strong engine power, fast refueling, and pneumatic tire options. HAMAC diesel forklift trucks can be used in factory yards, construction material yards, timber yards, ports, loading areas, and paved industrial sites. For severe mud, loose soil, or highly uneven ground, a 4WD rough terrain forklift may be a better choice.

What is the difference between a diesel forklift and an electric forklift? +

A diesel forklift is usually preferred for long outdoor shifts, heavier loads, rapid refueling, and applications with uneven or mixed surfaces. An electric forklift is often preferred for indoor warehouses and factories where low noise and no exhaust emissions are important. The right forklift depends on the working environment, load capacity, daily operating hours, charging or fuel availability, and local emission requirements.

What lift heights are available for HAMAC diesel forklifts? +

HAMAC diesel forklifts can be equipped with duplex or triplex mast configurations. The standard lift height is typically 3000 mm, and optional lift heights can reach up to 6000 mm depending on the forklift capacity, mast design, attachment, load center, and residual capacity. Full free lift mast options can be considered for container loading, low-ceiling facilities, and specific warehouse applications.

Can a diesel forklift be equipped with a side shifter or fork positioner? +

Yes. HAMAC diesel forklifts can be equipped with side shifters, fork positioners, long forks, fork extensions, carton clamps, bale clamps, paper roll clamps, drum handlers, and other forklift attachments. The attachment weight and changed load center must be considered because they affect the diesel forklift’s residual lifting capacity.

What tire options are available for diesel forklifts? +

HAMAC diesel forklifts can be configured with pneumatic tires or solid tires according to the working surface. Pneumatic tires are suitable for outdoor yards, construction materials, timber handling, and uneven paved areas. Solid tires are suitable for factory floors, warehouse loading zones, and areas where puncture resistance is important.

What diesel engine options are available? +

HAMAC can offer diesel engine options according to forklift capacity, destination country, fuel availability, and emission requirements. Depending on the project, available engine brands may include Xinchai, Kubota, Isuzu, or Cummins. Stage III, Stage V, or other emission configurations should be confirmed according to the destination-market regulations before production.

What information is needed to select the right diesel forklift? +

Please provide the required capacity, load center, maximum lift height, pallet or load dimensions, working environment, ground condition, tire requirement, daily operating hours, attachment requirement, engine emission standard, quantity, and destination country. HAMAC can then recommend a suitable diesel forklift model with the appropriate engine, mast, tires, cabin, and attachments.
