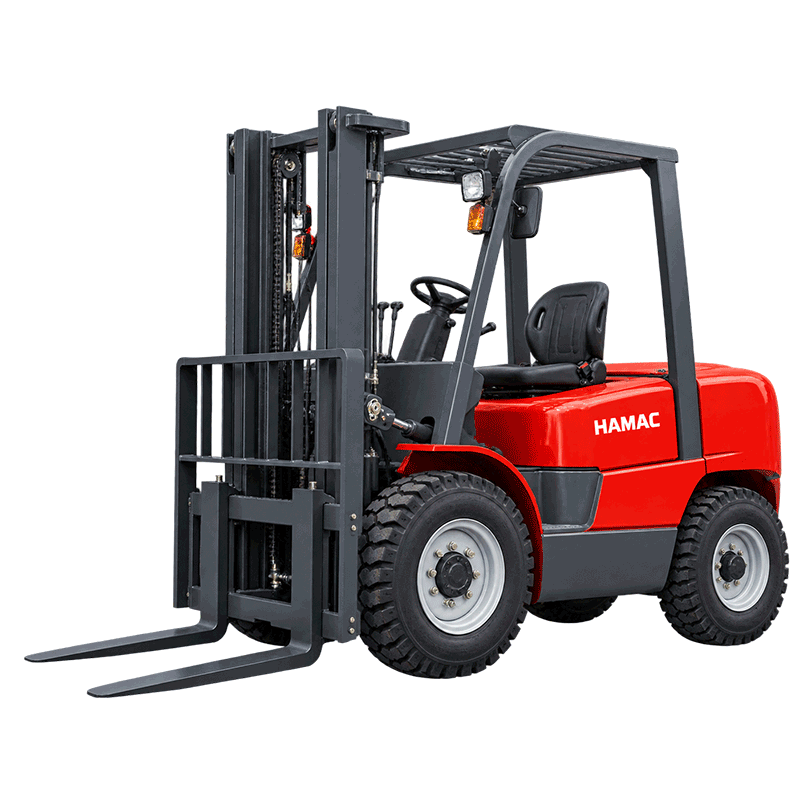

Pneumatic Tire IC Forklifts

1.5–10 Ton Diesel, LPG & Gasoline Forklifts

HAMAC pneumatic tire IC forklifts are internal combustion counterbalance forklifts designed for outdoor handling, industrial yards, construction material storage, timber yards, factories, ports, loading areas and mixed-surface operations. Equipped with pneumatic tires, these forklifts provide better traction, ground clearance and travel stability on paved yards, uneven concrete, compacted ground and other demanding industrial surfaces.

The pneumatic tire forklift range is available with diesel, LPG, gasoline or LPG/gasoline dual fuel power options. HAMAC can configure each internal combustion forklift with different engines, mast heights, fork lengths, full cabins, air conditioners, side shifters, fork positioners, long forks, safety lights and specialized attachments according to the material type, lifting height, site conditions and destination-market requirements.

Capacity: 1.5–10 Tons

Power Options: Diesel, LPG, Gasoline or Dual Fuel

Tire Type: Pneumatic Tires for Outdoor and Mixed-Surface Handling

Pneumatic Tire IC-Technical Specifications Overview

Get a Quote → Ask for Details →

HAMAC pneumatic tire IC forklifts are available from 1.5 tons to 10 tons. The 1.5T, 1.8T and 2T pneumatic tire forklifts are suitable for general outdoor pallet handling, warehouses with loading yards, small factories, workshops and truck loading areas. The 2.5T, 3T and 3.5T diesel or LPG pneumatic tire forklifts are widely used for building materials, timber, beverage distribution, factory logistics, container loading and unloading, rental fleets and general industrial handling.

For heavier loads, HAMAC provides 4T, 5T, 7T, 8T and 10T pneumatic tire forklifts for steel products, stone, marble, precast concrete, machinery components, large palletized cargo and industrial materials. The correct pneumatic tire forklift should be selected according to the rated capacity, load center, lift height, ground condition, gradient, attachment weight, engine requirement, fuel availability and daily operating hours.

Product Advantages

01 Powerful Engine Performance

HAMAC internal combustion forklifts are available with diesel, LPG, gasoline and dual-fuel power options to match different operating requirements. Diesel forklifts provide strong torque for heavy loads and outdoor work, while LPG and gasoline forklifts offer flexible performance for factory, loading dock and mixed indoor-outdoor applications with suitable ventilation. IC forklift power systems are designed to deliver stable travel performance, responsive lifting and dependable operation during continuous material handling tasks.

02 Fast Refueling for Continuous Work

Internal combustion forklifts can be refueled quickly, helping customers reduce downtime during long shifts and high-frequency handling operations. Diesel tanks can be refilled efficiently, while LPG cylinders can be replaced quickly when fuel is available on site. This makes diesel, LPG and dual-fuel forklifts a practical choice for rental fleets, logistics yards, busy loading areas and operations that cannot wait for battery charging.

03 Built for Outdoor and Heavy-Duty Applications

With durable frames, powerful engines, high ground clearance and robust drive systems, HAMAC internal combustion forklifts are suitable for industrial yards, construction material storage, timber yards, factories, ports and outdoor logistics areas. They can handle demanding work involving building materials, machinery parts, steel products, timber, palletized cargo and other heavy industrial loads.

04 Pneumatic Tire Options for Uneven Ground

HAMAC diesel and LPG forklifts can be equipped with pneumatic tires for better traction and stability on paved yards, loading areas and uneven outdoor surfaces. This configuration is especially suitable for construction sites, lumber yards, agricultural facilities, ports and industrial areas where a standard warehouse electric forklift may not be the best choice. Pneumatic-tire IC forklifts are widely used where ground clearance, durability and outdoor mobility are important.

05 Configurable Fuel, Mast and Attachment Solutions

Customers can choose diesel, LPG, gasoline or dual-fuel forklift configurations based on fuel availability, operating hours, emissions requirements and working environment. HAMAC can also provide duplex or triplex masts, full free lift options, side shifters, fork positioners, fork extensions, cabins, air conditioners, warning lights and specialized attachments to match pallet sizes, rack heights and handling tasks. Industry IC models commonly offer diesel, LPG or dual-fuel versions within comparable 2.0–3.5T capacity classes.

06 Durable Design and Operator Comfort

HAMAC internal combustion forklifts are designed for long operating hours with an ergonomic operator area, clear forward visibility, practical controls and service-friendly component access. Heavy-duty cooling, reliable drivetrain components and reinforced chassis configurations help support stable operation in hot, dusty and demanding work environments. Contemporary diesel/LPG forklift designs commonly combine enhanced cooling, wet-disc brake axles, ergonomic cabins and durable powertrain components to improve uptime and serviceability.

Compatible Attachments

Rallet fork

Bucket

Crane Arm

Mixed barrel

Bale Fork

Snow Blower

Grapple Bucket

Mixed Bucket

Road Sweeper

Mixed barrel

Crass Cutter

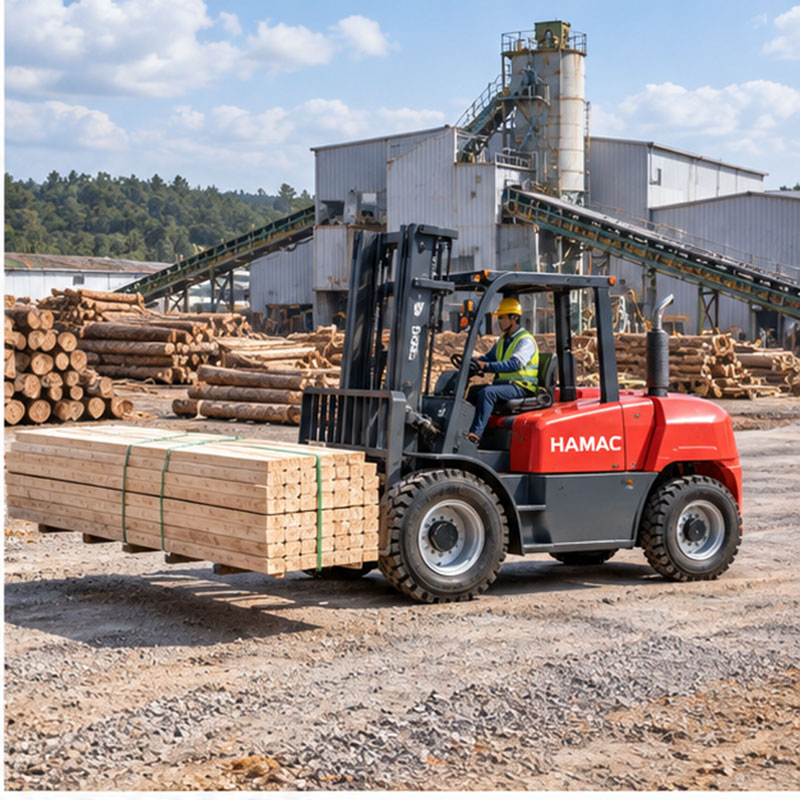

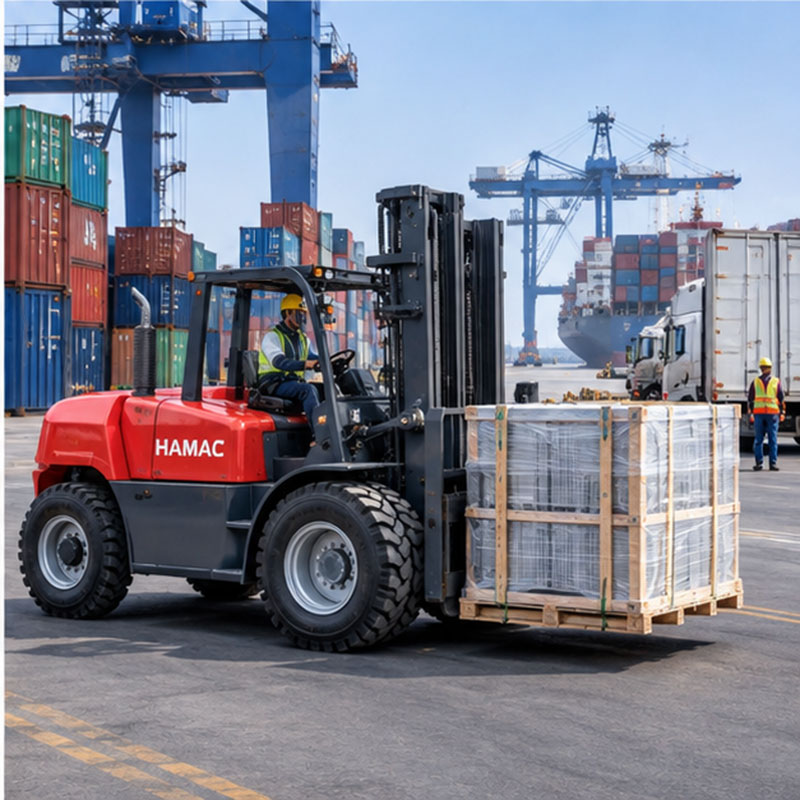

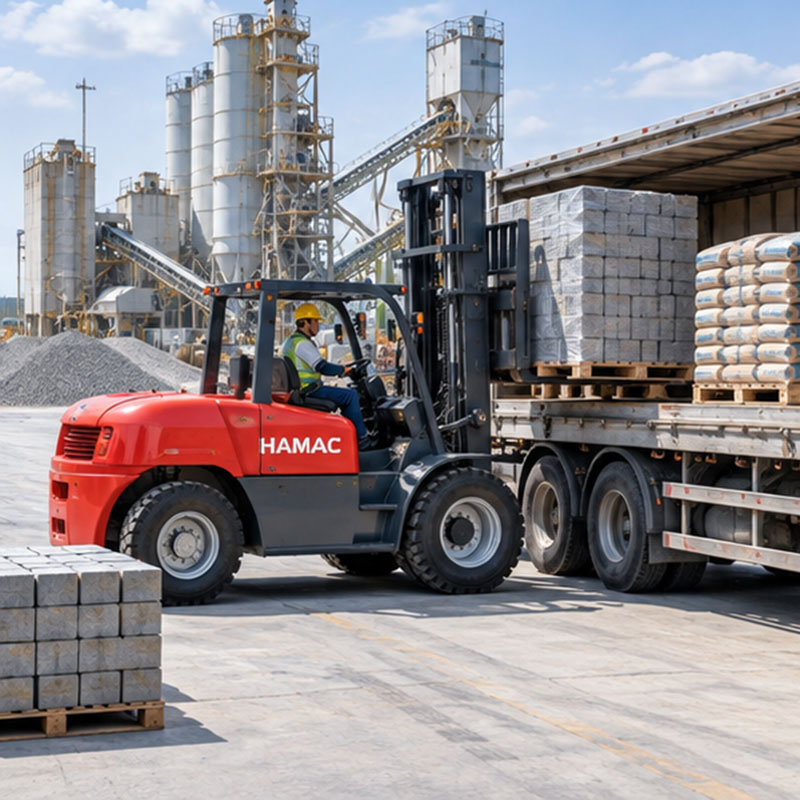

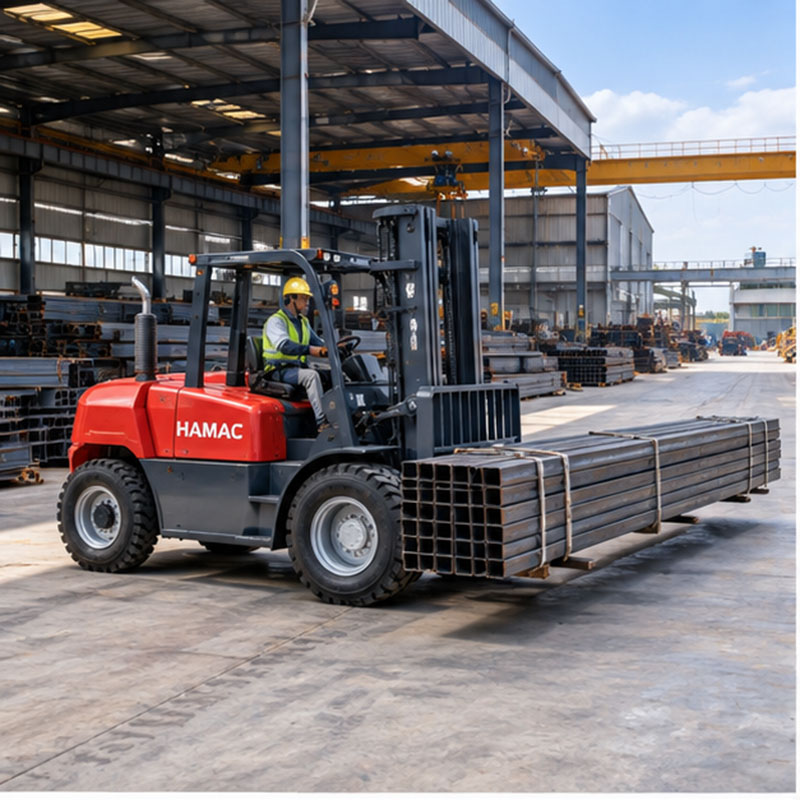

Application Scenarios

Construction Sites

Agriculture & Farming

Industrial Logistics

Municipal Works

Mining & Energy

Technical Specifications

Item	Unit	FP15	FP18	FP20	FP25	FP30	FP35	FP50	FP70	FP100
General
Model	-	FP15	FP18	FP20	FP25	FP30	FP35	FP50	FP70	FP100
Power Type	-	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional
Fuel Configuration	-	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline / Dual Fuel Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG Optional	Diesel Optional
Operator Type	-	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Chassis Type	-	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance
Rated Capacity	kg	1500	1800	2000	2500	3000	3500	5000	7000	10000
Load Center	mm	500	500	500	500	500	500	600	600	600
Tire Type	-	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire
Tire Size, Front	-	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28×9-15-12PR	28×9-15-12PR	300-15-18PR	8.25-15-14PR	9.00-20-14PR
Tire Size, Rear	-	5.00-8-10PR	5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-14PR	8.25-15-14PR	9.00-20-14PR
Number of Wheels, Front / Rear	-	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2
Mast and Forks
Standard Lift Height	mm	3000	3000	3000	3000	3000	3000	3000	3000	3000
Optional Lift Height	mm	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000
Mast Type	-	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex
Free Lift	mm	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Mast Tilt Angle, Forward / Backward	deg	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12
Fork Dimensions, L × W × T	mm	920 × 100 × 35	920 × 100 × 35	1070 × 100 × 40	1070 × 122 × 40	1070 × 122 × 45	1070 × 122 × 45	1220 × 150 × 50	1220 × 150 × 60	1520 × 200 × 80
Fork Carriage Class	-	IIA	IIA	IIA	IIIA	IIIA	IIIA	IIIB	IIIB	IV
Dimensions
Wheelbase	mm	1400	1400	1600	1600	1700	1700	2300	2300	2800
Overall Length without Forks	mm	2245	2245	2450	2450	2700	2700	3485	3645	4202
Overall Width	mm	1170	1170	1200	1200	1250	1250	2045	2045	2165
Overhead Guard Height	mm	2035	2035	2100	2100	2150	2150	2450	2450	2560
Min. Ground Clearance under Mast	mm	110	110	120	120	135	135	180	180	200
Min. Outside Turning Radius	mm	1955	1955	2200	2200	2450	2450	3225	3340	3940
Performance
Travel Speed, Laden / Unladen	km/h	14.5 / 14.5	14.5 / 14.5	15 / 15	15 / 15	18 / 18	18 / 18	26 / 26	26 / 26	26 / 26
Lifting Speed, Laden / Unladen	mm/s	500 / 530	500 / 530	480 / 520	480 / 520	460 / 500	460 / 500	400 / 450	380 / 420	350 / 400
Lowering Speed, Laden / Unladen	mm/s	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500
Max. Gradeability, Laden	%	21	21	20	20	20	20	25	25	20
Engine and Transmission
Engine Type	-	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG / Gasoline Optional	Diesel / LPG Optional	Diesel Engine
Engine Brand Options	-	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Kubota / Nissan / GQ-4Y Optional	Xinchai / Cummins / Isuzu / PSI Optional	Cummins / Isuzu Optional	Cummins / Isuzu Optional
Transmission Type	-	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Automatic / Manual Optional	Hydraulic Transmission	Hydraulic Transmission	Hydraulic Transmission
Optional Configurations
Available Options	-	Diesel Engine, LPG Engine, Gasoline Engine, LPG / Gasoline Dual Fuel System, Pneumatic Tires, Solid Pneumatic Tires, Duplex Mast, Triplex Full Free Lift Mast, Side Shifter, Fork Positioner, Fork Extensions, Long Forks, Full Cabin, Air Conditioner, Heater, Blue Safety Light, Red Zone Warning Light, Rear Working Light, Camera System, Fire Extinguisher, Weighing System and Customized Attachments

Product Overview Product Advantages Compatible Attachments Application Scenarios Technical Specifications

Free Consultation →

Common FAQs

What is a pneumatic tire IC forklift? −

A pneumatic tire IC forklift is an internal combustion counterbalance forklift equipped with air-filled pneumatic tires. It can be powered by diesel, LPG, gasoline, or a dual fuel system. Pneumatic tire forklifts are designed for outdoor yards, loading areas, construction material storage, timber handling, factories, and mixed-surface industrial applications.

What is the difference between pneumatic tire and cushion tire forklifts? +

Pneumatic tire forklifts have larger air-filled tires that provide better traction, ground clearance, and stability on outdoor or uneven surfaces. Cushion tire forklifts use solid tires and are better suited to smooth, dry, and level indoor floors. HAMAC pneumatic tire IC forklifts are recommended for paved yards, outdoor loading areas, timber yards, construction materials, and industrial sites with mixed surfaces.

What capacities are available for HAMAC pneumatic tire IC forklifts? +

HAMAC pneumatic tire IC forklifts are available from 1.5 tons to 10 tons. The main range includes 1.5T, 1.8T, 2T, 2.5T, 3T, 3.5T, 5T, 7T, and 10T models. A 2.5 ton, 3 ton, and 3.5 ton pneumatic tire forklift is widely used for general factory logistics, truck loading, and outdoor pallet handling.

What power options are available for pneumatic tire forklifts? +

HAMAC pneumatic tire IC forklifts can be configured with diesel, LPG, gasoline, or LPG/gasoline dual fuel systems, depending on the forklift model and required capacity. Diesel forklifts are commonly selected for outdoor and heavy-duty work, while LPG, gasoline, and dual fuel forklifts can be selected for factory, loading dock, and mixed indoor-outdoor applications with suitable ventilation.

Can a pneumatic tire forklift work on uneven ground? +

A pneumatic tire forklift is suitable for uneven paved yards, compacted ground, construction material storage areas, and industrial surfaces that are rougher than standard warehouse floors. However, it is not a replacement for a 4WD rough terrain forklift on mud, loose soil, deep gravel, steep slopes, or severely uneven construction sites. HAMAC can recommend a rough terrain forklift when stronger off-road capability is required.

What lift heights are available for pneumatic tire IC forklifts? +

HAMAC pneumatic tire IC forklifts can be equipped with duplex or triplex mast configurations. Standard lift height is typically 3000 mm, while optional lift heights can range from 3000 mm to 6000 mm, depending on forklift capacity, mast type, load center, attachment weight, and required residual capacity. Full free lift mast options can be considered for specific loading and warehousing requirements.

Can pneumatic tire IC forklifts be used for container loading? +

Yes. A pneumatic tire forklift can be configured for container loading and unloading when the machine dimensions, mast lowered height, fork length, turning radius, pallet size, and container clearance are suitable. For standard containers and limited overhead clearance, HAMAC can recommend a suitable mast configuration, fork length, and attachment option.

What attachments are available for pneumatic tire forklifts? +

HAMAC pneumatic tire IC forklifts can be equipped with side shifters, fork positioners, fork extensions, long forks, carton clamps, bale clamps, paper roll clamps, drum handlers, coil handlers, and other specialized forklift attachments. The attachment weight and load center must be considered because they affect the forklift’s residual lifting capacity.

Which industries use pneumatic tire IC forklifts? +

Pneumatic tire IC forklifts are widely used in construction materials, timber and lumber yards, ports, container yards, factories, steel and metal processing, beverage distribution, machinery manufacturing, agriculture, rental fleets, and outdoor logistics operations. They are suitable for handling pallets, timber, pipes, steel products, building materials, machinery parts, and industrial cargo.

What information is needed to choose a pneumatic tire IC forklift? +

Please provide the required forklift capacity, load center, lift height, pallet or load dimensions, working surface, outdoor or indoor operating environment, ground condition, gradient, preferred fuel type, daily operating hours, attachment requirement, engine emission standard, quantity, and destination country. HAMAC can recommend a suitable diesel, LPG, gasoline, or dual fuel pneumatic tire forklift configuration.
