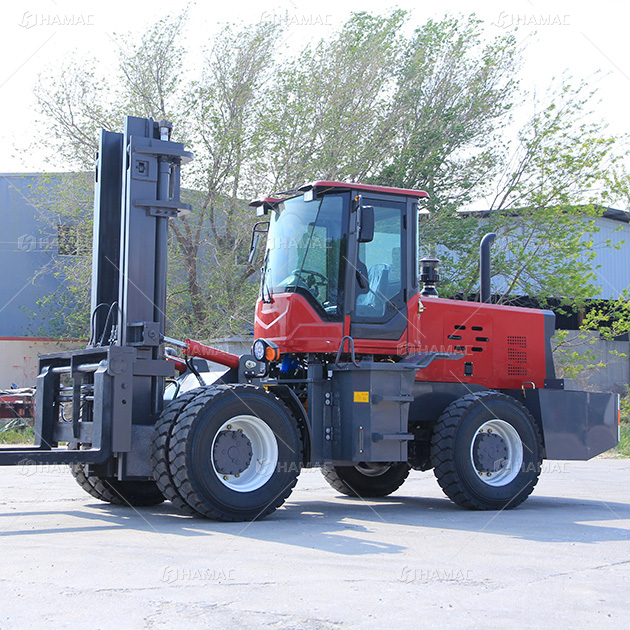

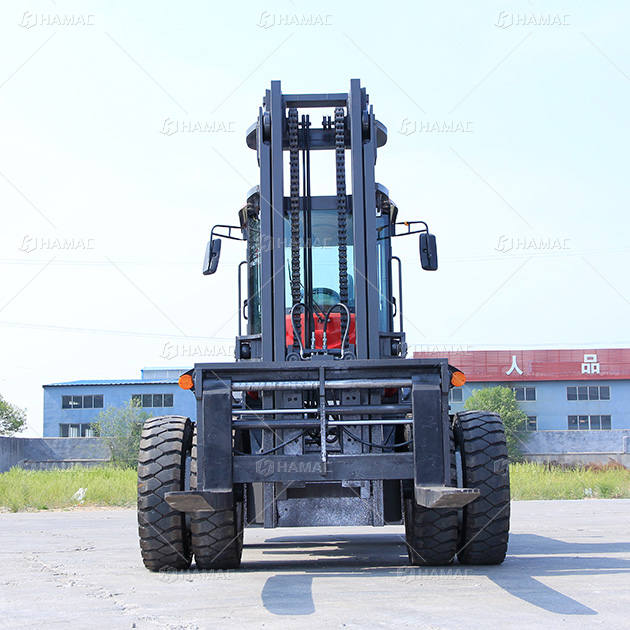

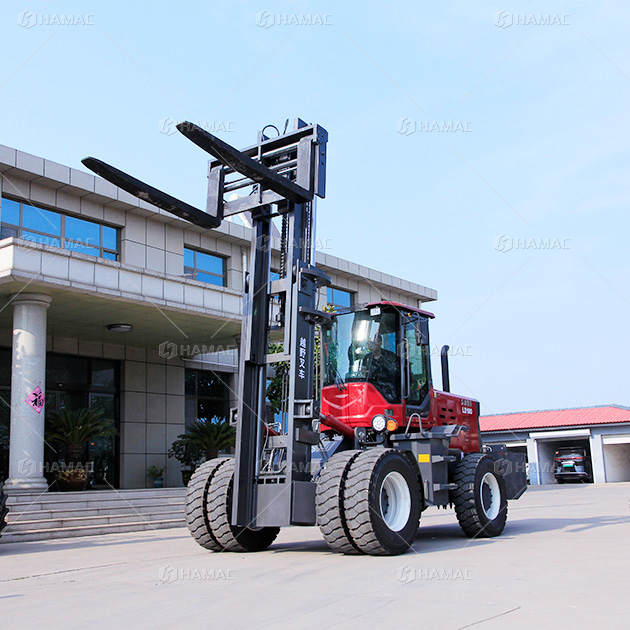

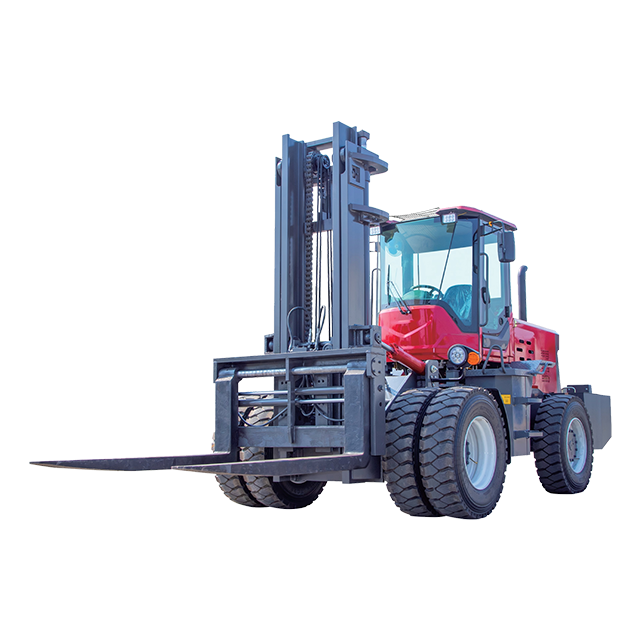

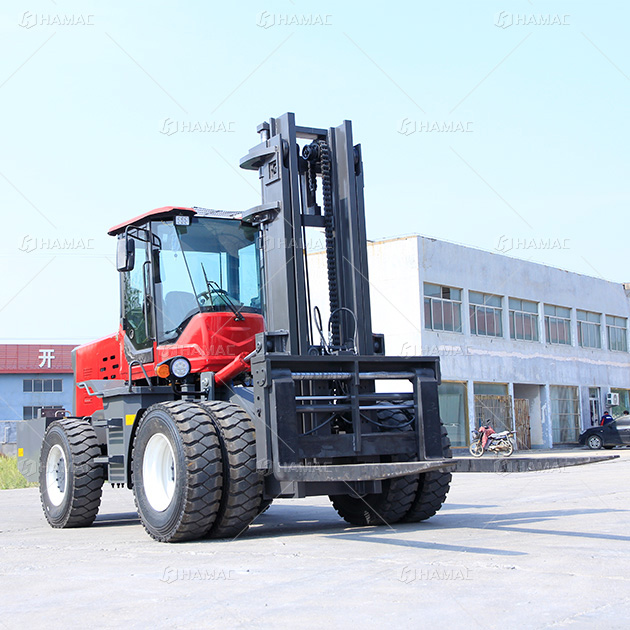

HAMAC FD100‑RT rough terrain forklift sits at the top end of the FD series for users who frequently handle 8–10 ton loads outdoors. Its heavy‑duty chassis, large counterweight and reinforced mast are built for steel coils, stone blocks, large timber packs and oversized industrial components that require both high capacity and stability.heavyliftforklift+3
Equipped with 4WD, large pneumatic tyres and generous ground clearance, the FD100‑RT 10T rough terrain forklift delivers strong traction and shock absorption on quarry floors, steel yards, construction access roads and port storage areas. For operators who need one machine to load and unload trucks, feed production or processing lines and move the heaviest materials across mixed surfaces, FD100‑RT offers rugged performance and reliability.
A rough terrain forklift is engineered specifically for outdoor use on uneven, muddy or soft surfaces, working reliably where standard warehouse trucks cannot operate safely.
Large, heavily treaded pneumatic tyres and increased ground clearance allow the machine to climb over ruts, rocks and debris while maintaining traction and stability on gravel, mud and grass.
Rough terrain forklifts usually feature high‑power diesel engines that deliver strong torque for climbing and pulling on rough surfaces, with long operating hours and no need for frequent charging.
Many models offer true 4WD or switchable 2WD/4WD systems, giving operators the flexibility to balance fuel economy and maximum traction depending on whether they are on firm yards or very soft ground.
Reinforced chassis, wide wheelbases and heavy‑duty suspension systems help rough terrain forklifts stay stable under heavy loads on sloping and uneven terrain, reducing the risk of tipping.
Thanks to their go‑anywhere design, rough terrain forklifts are indispensable in construction sites, farms, timber and stone yards, mining and even disaster‑relief operations, handling materials efficiently across multiple outdoor environments.
| Item | Unit | FD100-RT Value (Typical) |
|---|---|---|
| Rated load capacity | kg | 10000 |
| Load center | mm | 600 |
| Power type | - | Diesel |
| Drive type | - | 4WD rough terrain |
| Mast type | - | Wide-view duplex / triplex mast |
| Max. lift height | mm | 3000–5000 |
| Collapsed mast height | mm | approx. 2800–3900 |
| Free lift height | mm | up to 300–500 (standard mast) |
| Fork size (L × W × T) | mm | 1520 × 175 × 85 |
| Tilt angle (forward / back) | ° | 6 / 12 |
| Overall length (without fork) | mm | approx. 4200–4300 |
| Overall width | mm | approx. 2165–2245 |
| Overhead guard height | mm | approx. 2560–2700 |
| Wheelbase | mm | 2800 |
| Ground clearance (mast) | mm | 230–260 |
| Ground clearance (center) | mm | 300 |
| Front tyre size | - | 10.00-20-18PR or similar pneumatic tyre |
| Rear tyre size | - | 9.00-20-18PR or similar pneumatic tyre |
| Travel speed (loaded) | km/h | 23–28 |
| Travel speed (unloaded) | km/h | 28–32 |
| Max. gradeability (loaded) | % | 20 |
| Service weight | kg | approx. 13000–13500 |
| Engine type | - | High-output diesel engine (e.g. 4HK1 or similar) |
| Rated engine power | kW | 95–120 |
| Fuel tank capacity | L | 150–200 |
| Hydraulic oil tank capacity | L | 100–130 |
| Steering type | - | Hydraulic power steering |
| Brake system | - | Hydraulic / clamp disc or wet disc brakes |
