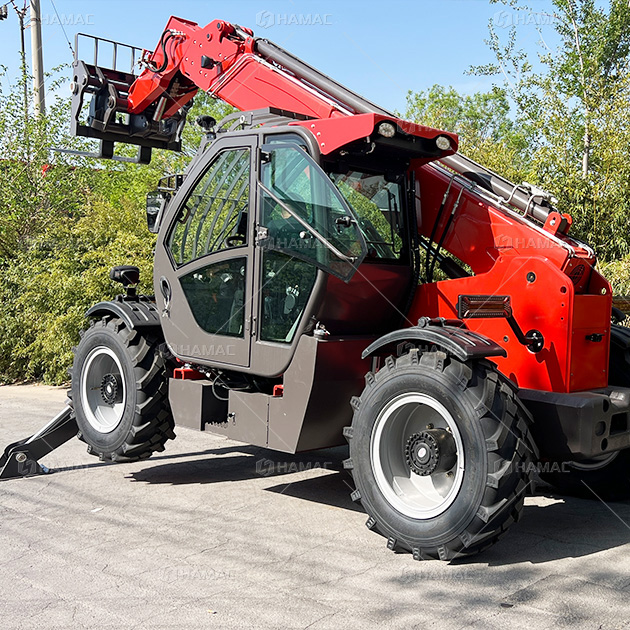

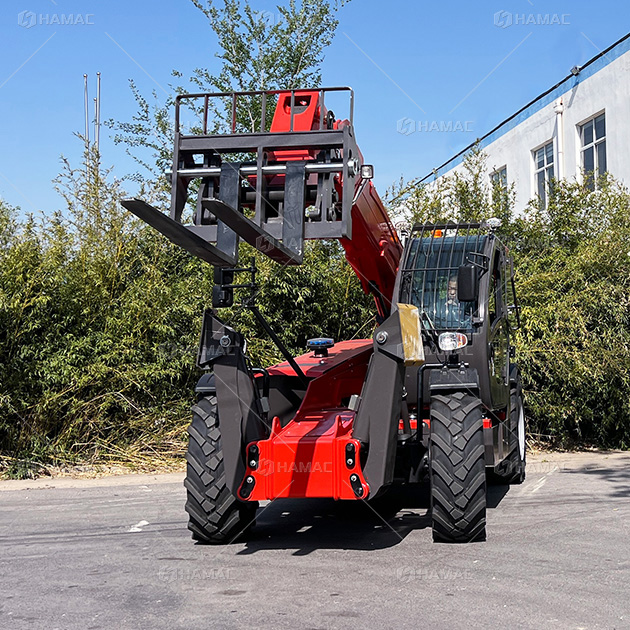

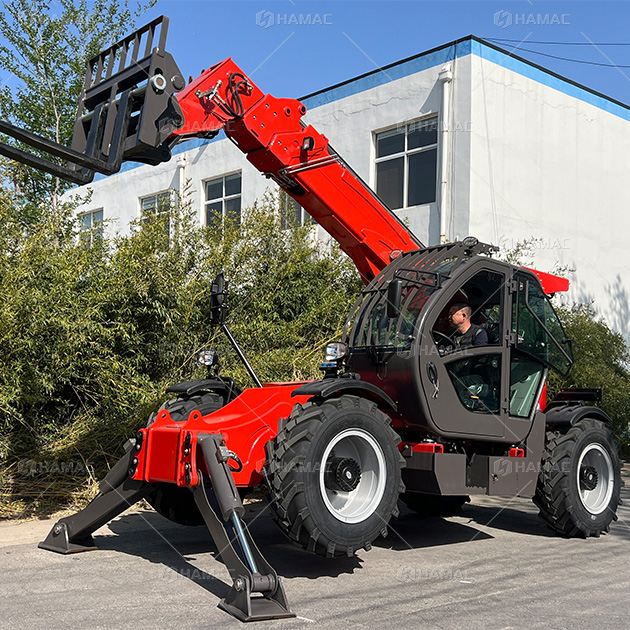

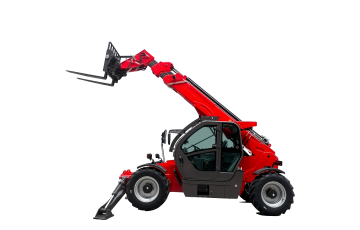

The HAMAC HT3510 is a 3.5 ton telehandler with 10 m lift height, positioned as a versatile mid‑range model for construction, agriculture and industrial applications. Its telescopic boom provides ample reach to serve second‑ and third‑floor work levels, roof edges and tall storage racks, while its compact design and responsive steering keep it agile on congested sites. The 4×4 rough‑terrain chassis offers solid performance on uneven ground, making HT3510 suitable for mixed indoor‑outdoor operations.shannengtelehandler.made-in-china+5
Using forks, buckets, lifting jibs and platforms, the HT3510 telehandler can unload trucks, move materials around the jobsite and support installation and maintenance tasks at medium height. It fits fleets that need more capacity and reach than compact telehandlers, but still want a machine that can work comfortably where space is limited. For owners focused on flexibility across many projects, HT3510 offers an efficient blend of lifting power, reach and maneuverability.

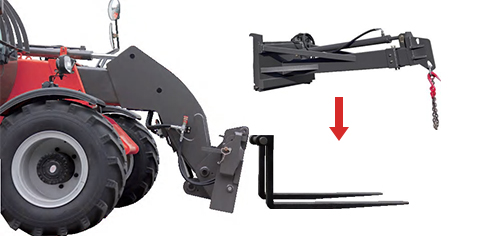

A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.

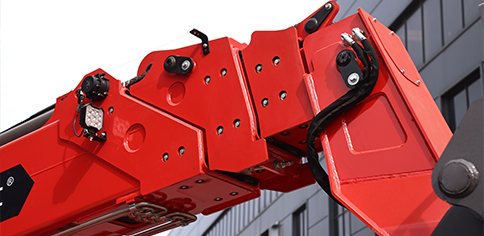

With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.

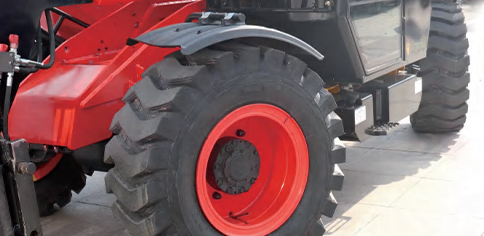

Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.

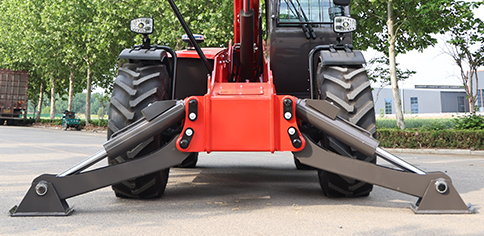

Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.

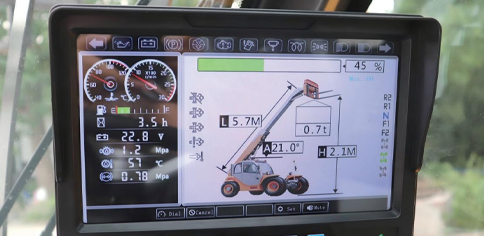

Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.

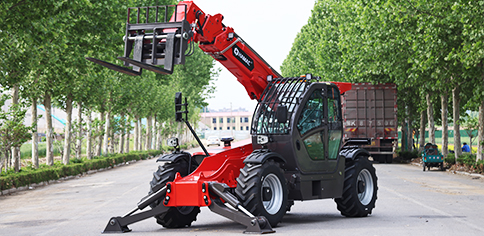

Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 3500 kg |
| Max. lifting height | 10.60 m | |
| Max. outreach | 5.70 m | |
| Weight and dimensions | Overall length to carriage | 5.80 m |
| Length to face of forks | 7.00 m | |
| Min transport size | 5.05 m | |
| Overall width | 2.20 m | |
| Track width | 1.78 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.15 m | |
| Ground clearance | 0.35 m | |
| Overall cab width | 0.84 m | |
| Tilt‑up angle | 12 ° | |
| Tilt‑down angle | 90 ° | |
| External turning radius (over tyres) | 4.25 m | |
| Unladen weight (with fork) | 9500 kg | |
| Tires type | Pneumatic | |
| Standard tires | 16/70‑20 | |
| Forks length/ width/ section | 1220 mm × 125 mm / 50 mm | |
| Performances | Lifting | 10 s |
| Lowering | 7 s | |
| Extension | 12 s | |
| Retraction | 8.6 s | |
| Crowd | 4.8 s | |
| Dump | 3.4 s | |
| Engine | Engine brand | Yuchai (optional) |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4M22T‑105 | |
| Number of cylinders / Capacity of cylinders | 4 ‑ 4400 cm³ | |
| I.C. Engine power rating ‑ Power | 103 Hp / 77.3 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air‑cut brake | |
| Service brake | immersed multi‑discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 120 L/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 170L | |
| Fuel tank | 195L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |

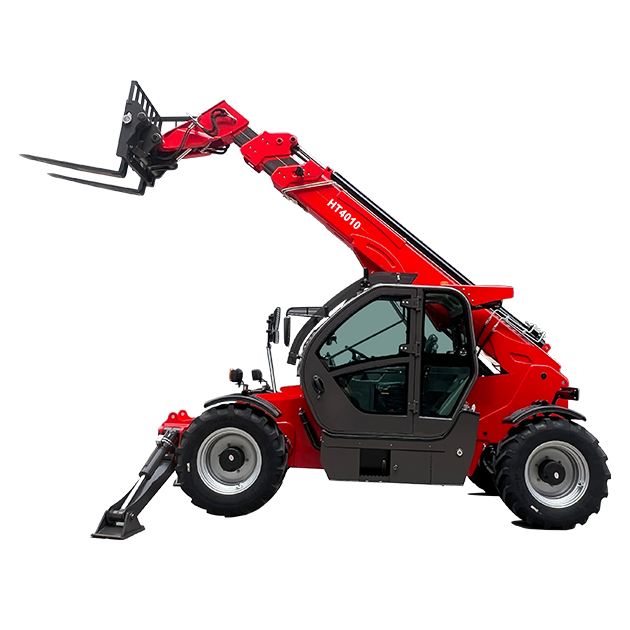

On a commercial building project, an HT4010 telehandler is used to assist facade and curtain wall ins
