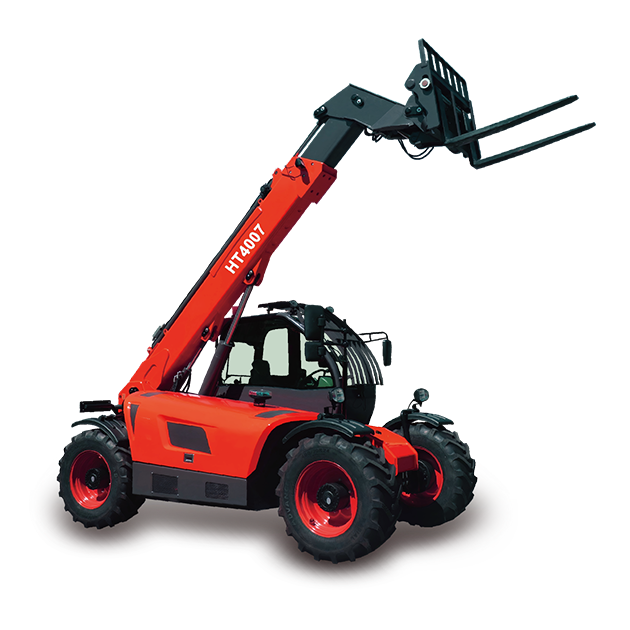

The HAMAC HT4007 is a compact 4 ton telehandler with a 7 m lift height, designed for sites that need high capacity in confined working areas. Its short wheelbase and tight turning radius allow it to navigate between buildings, inside busy yards and around farm infrastructure, while a heavy‑duty 4×4 chassis provides the traction and stability required for rough‑terrain operation. With 7 m reach, HT4007 can lift and place heavy pallets and bulk loads onto low‑to‑mid level platforms, mezzanines and high racks.
Thanks to hydraulic quick‑coupling, the HT4007 telehandler works with forks, buckets, lifting jibs and work platforms, so one machine can unload trucks, move materials across uneven ground and support installation or maintenance tasks. It is ideal for builders, industrial yards and farms that regularly handle heavy loads but work in restricted spaces where larger telehandlers are impractical. For owners and rental fleets, HT4007 offers a compact yet powerful all‑terrain handler that boosts productivity on many everyday jobs.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 4000 kg |
| Max. lifting height | 7.00 m | |
| Max. outreach | 3.20 m | |
| Weight and dimensions | Overall length to carriage | 4.65 m |
| Length to face of forks | 5.87 m | |
| Min transport size | 4.35 m | |
| Overall width | 2.20 m | |
| Track width | 1.78 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.15 m | |
| Ground clearance | 0.35 m | |
| Overall cab width | 0.84 m | |
| Tilt‑up angle | 12 ° | |
| Tilt‑down angle | 90 ° | |
| External turning radius (over tyres) | 4.25 m | |
| Unladen weight (with fork) | 8100 kg | |
| Tires type | Tubeless | |
| Standard tires | 400/70‑24 | |
| Forks length/ width/ section | 1220 mm × 125 mm / 50 mm | |
| Performances | Lifting | 10 s |
| Lowering | 7 s | |
| Extension | 12 s | |
| Retraction | 8.6 s | |
| Crowd | 4.8 s | |
| Dump | 3.4 s | |
| Engine | Engine brand | Yuchai (optional) |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4M22T‑115 | |
| Number of cylinders / Capacity of cylinders | 4 ‑ 4400 cm³ | |
| I.C. Engine power rating ‑ Power | 114 Hp / 85 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air‑cut brake | |
| Service brake | immersed multi‑discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 120 L/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 170L | |
| Fuel tank | 195L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
