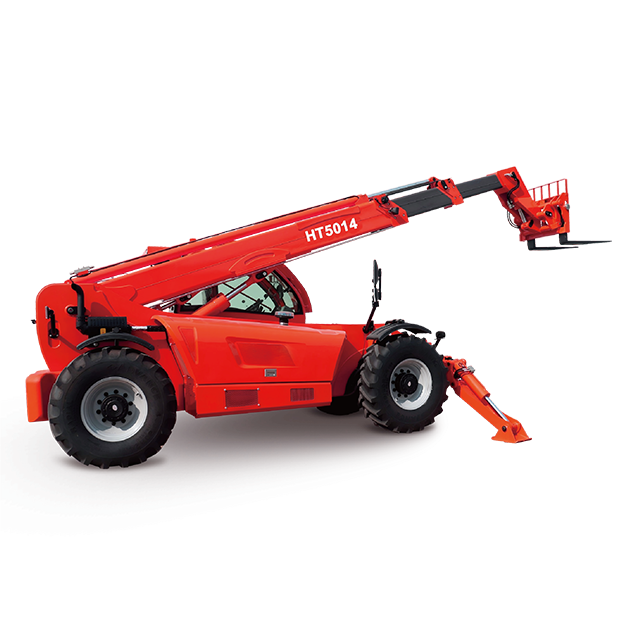

The HT5014 telehandler is a 5 ton, 14 m rough terrain telescopic handler designed for heavy lifting and long‑reach material handling on demanding job sites. Built on a robust chassis with 4WD drive and off‑road tires, it delivers powerful performance in construction, industrial, agricultural, and infrastructure applications where stability, reach, and mobility are critical.
With its telescopic boom and multiple attachment options, the HT5014 can handle pallets, bulk materials, and specialized loads, replacing several conventional machines with one versatile solution.

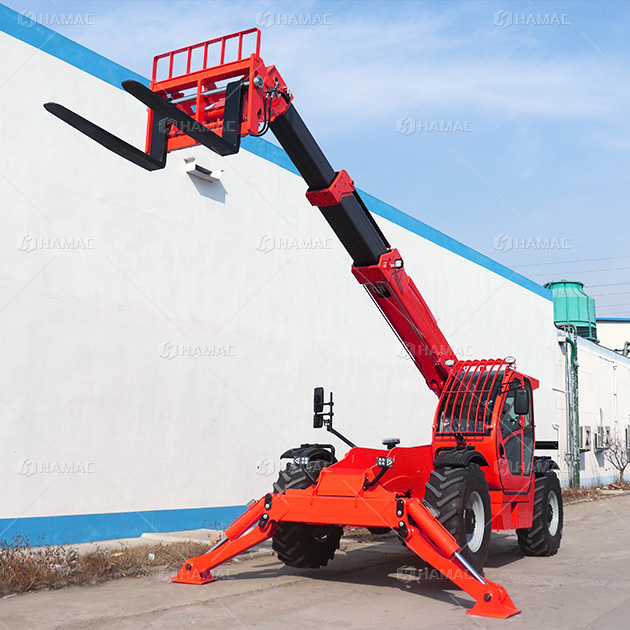

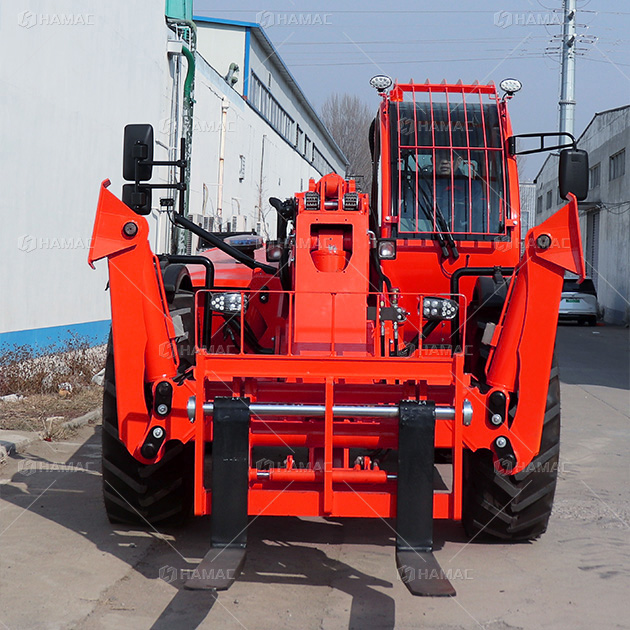

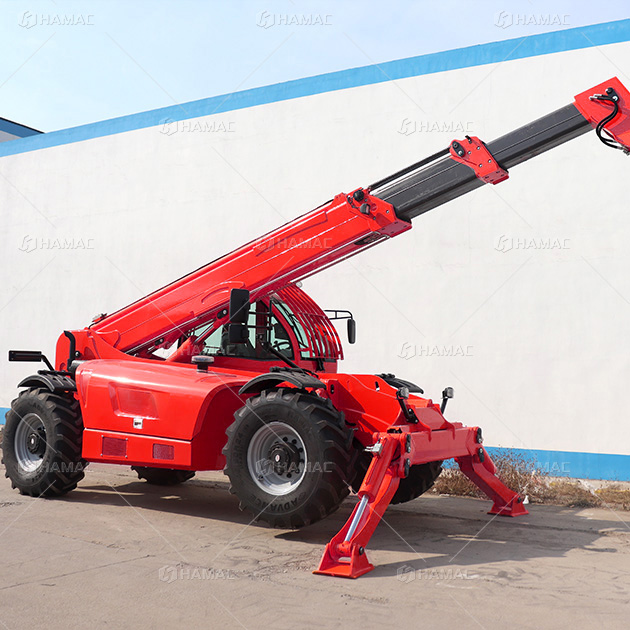

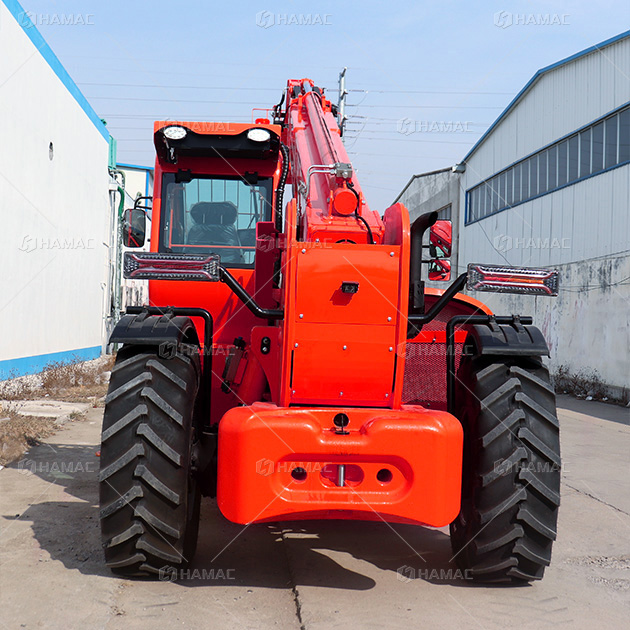

The HT5014 telehandler is a high‑capacity rough terrain telescopic handler engineered to handle demanding material‑handling tasks on modern construction sites. With a rated load of 5,000 kg and a maximum lift height of around 14 m, it can pick, carry and place heavy pallets and bulk materials directly at working level, from ground floor to upper structures.
Built on a robust 4WD chassis with off‑road tires, the HT5014 delivers confident performance on uneven surfaces, gravel yards and partially prepared job sites. Its telescopic boom and wide selection of attachments turn it into a multi‑purpose machine that can replace conventional forklifts and loaders, helping contractors reduce equipment numbers while increasing onsite productivity.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 5000 kg |
| Max. lifting height | 13.80 m | |
| Max. outreach | 8.00 m | |
| Weight and dimensions | Overall length to carriage | 6.40 m |
| Length to face of forks | 7.62 m | |
| Min transport size | 6.30 m | |
| Overall width | 2.35 m | |
| Track width | 1.90 m | |
| Overall height | 2.65 m | |
| Wheelbase | 3.60 m | |
| Ground clearance | 0.38 m | |
| Overall cab width | 0.84 m | |
| Tilt‑up angle | 12 ° | |
| Tilt‑down angle | 90 ° | |
| External turning radius (over tyres) | 4.10 m | |
| Unladen weight (with fork) | 13300 kg | |
| Tires type | Tubeless | |
| Standard tires | 440/80‑24 | |
| Forks length/ width/ section | 1220 mm × 125 mm / 50 mm | |
| Performances | Lifting | 26 s |
| Lowering | 26 s | |
| Extension | 29 s | |
| Retraction | 17 s | |
| Crowd | 9 s | |
| Dump | 9 s | |
| Engine | Engine brand | Yuchai (optional) |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4J22T‑125 | |
| Number of cylinders / Capacity of cylinders | 4 ‑ 4400 cm³ | |
| I.C. Engine power rating ‑ Power | 122 Hp / 91 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 40 km/h | |
| Parking brake | Automatic air‑cut brake | |
| Service brake | immersed multi‑discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 150 L/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 170L | |
| Fuel tank | 195L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
