FD40‑RT
Rough Terrain Forklifts
Rated load capacity: 4,000 kg
Maximum lift height: 4,500 mm
Consultar Ahora
HAMAC Spider Boom Lifts are compact tracked aerial work platforms designed to provide safe access to hard-to-reach areas where traditional boom lifts or truck-mounted platforms cannot operate efficiently. Featuring a lightweight structure, rubber tracks and spider-style outriggers, they combine high working height and outreach with excellent stability, making them ideal for both indoor projects and demanding outdoor jobsites.
Thanks to their narrow stowed width, low overall weight and rubber track undercarriage, HAMAC spider lifts can pass through standard doorways, gates and narrow corridors, and travel over soft ground, slopes and uneven terrain without damaging surfaces. The multi-position outriggers spread the load over a wide area, allowing secure setup on challenging ground conditions such as courtyards, gardens, stadium seating and industrial floors where ground pressure is a concern.

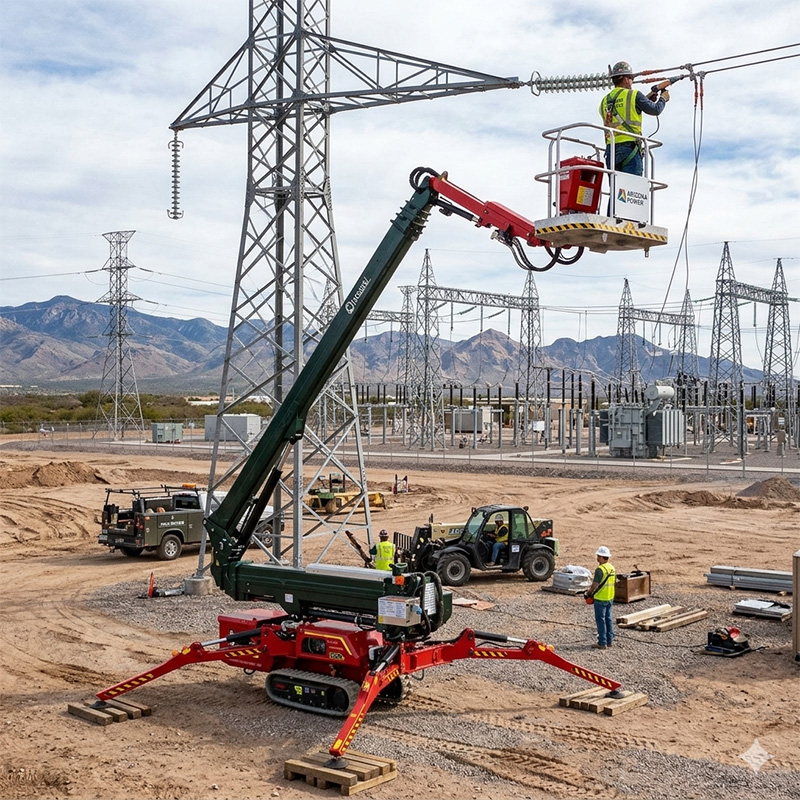

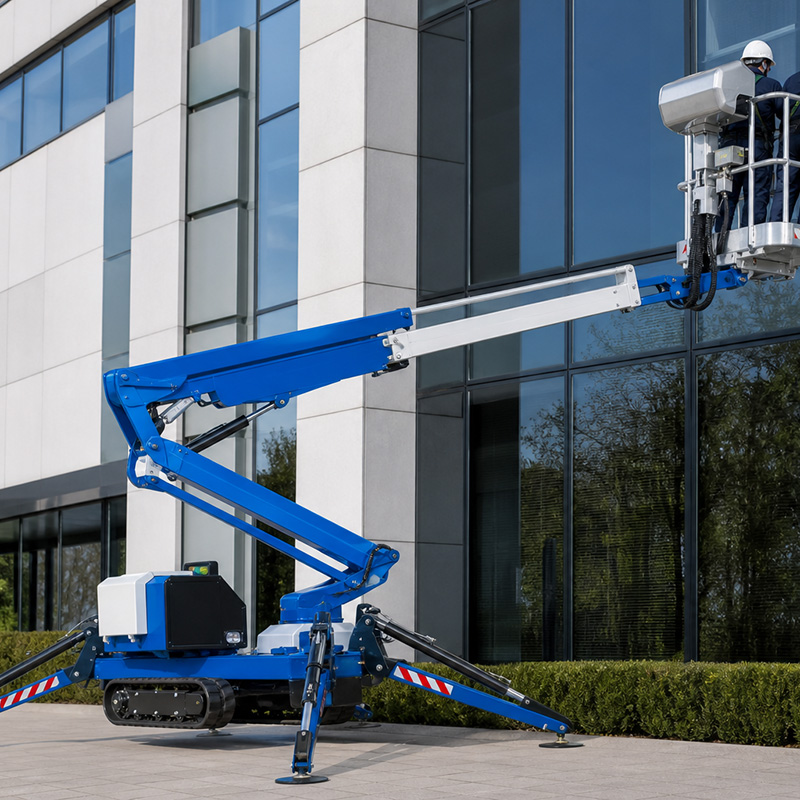

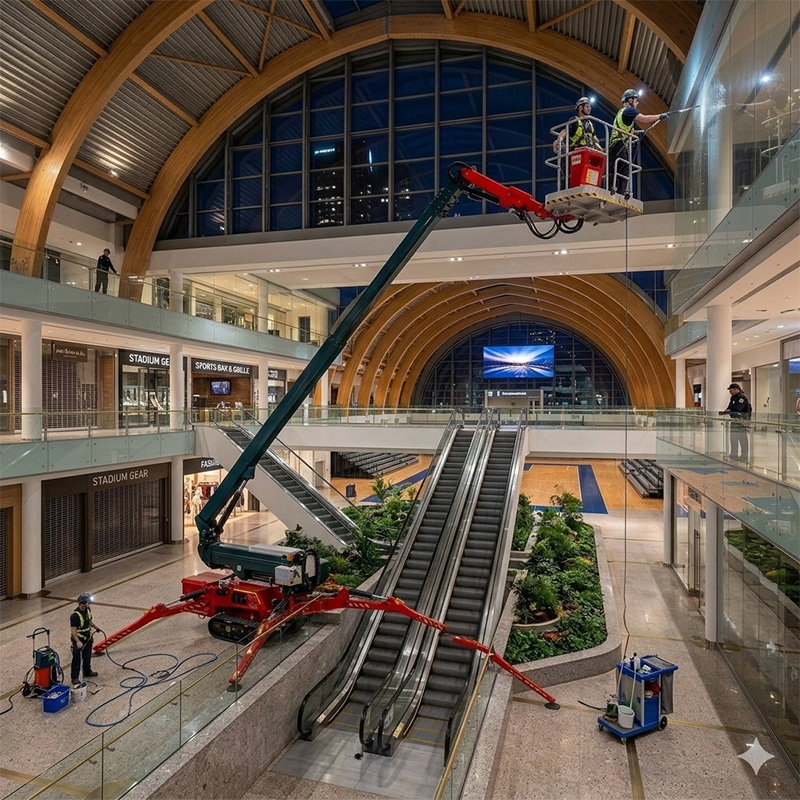

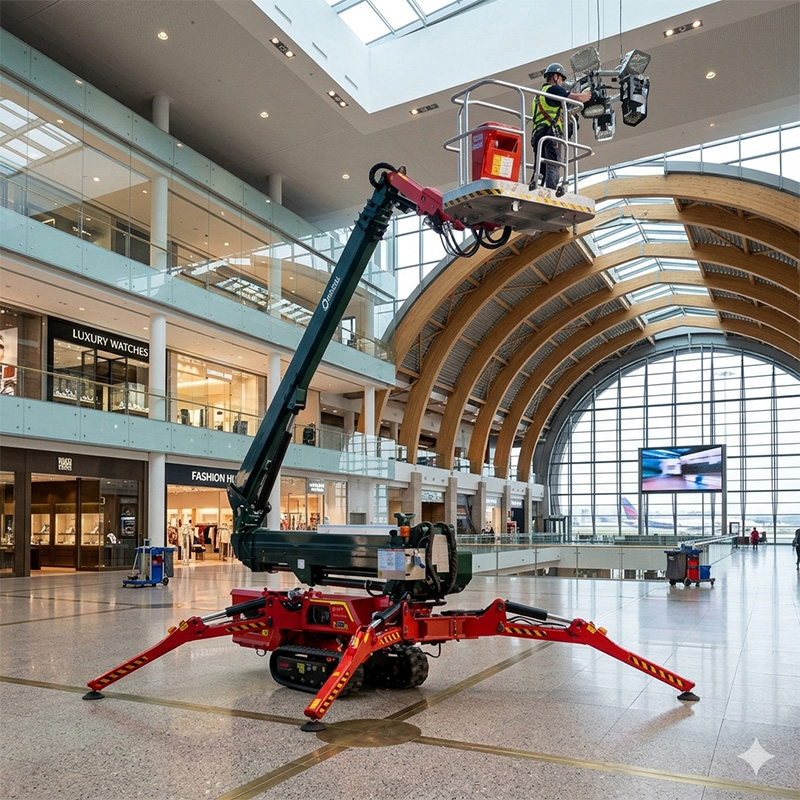

With generous vertical working heights and impressive horizontal outreach, HAMAC Spider Boom Lifts can reach over obstacles such as roofs, trees, fences and machinery, enabling efficient work on façades, roofs, windows and elevated structures. Typical applications include window cleaning, façade and roof maintenance, tree trimming, industrial plant maintenance, stadium and arena work, telecommunication and utility installations, and event setup in confined or high locations.
HAMAC Spider Boom Lifts are available with versatile power options, including diesel, electric or hybrid configurations, allowing zero-emission operation for indoor projects and powerful performance for outdoor construction and maintenance. Their compact transport dimensions, towable weight and user-friendly controls make them attractive for access equipment rental fleets and contractors who need a cost-effective solution to handle diverse jobsites with one flexible machine.
El manipulador telescópico combina las funciones de montacargas, grúa y cargador en un equipo compacto, cambiando rápidamente entre horquillas, cucharas, ganchos y plataformas de trabajo para realizar múltiples tareas en la misma obra.
Gracias a su brazo telescópico, puede colocar materiales a mayor altura y distancia que un montacargas convencional, alcanzando pisos superiores, techos, interior de camiones y superando obstáculos sin mover la máquina.
Tracción en las cuatro ruedas, gran altura libre y múltiples modos de dirección (delantera, 4 ruedas, desplazamiento lateral) le otorgan excelente tracción y estabilidad sobre barro, grava y superficies irregulares donde los montacargas de almacén no trabajan con seguridad.
Ofrece gran capacidad de carga en un chasis relativamente compacto, permitiendo maniobrar en espacios reducidos y obras congestionadas mientras eleva varias toneladas a alturas útiles de trabajo.
Los manipuladores telescópicos modernos incluyen tablas de carga, protección contra sobrecarga, control de estabilidad y gestión de brazo, ayudando al operador a mantenerse dentro de límites seguros y reducir riesgos de vuelco a gran alcance.
Como un solo equipo puede descargar camiones, transportar materiales por terrenos difíciles y posicionarlos en altura, reduce la cantidad de máquinas y operadores necesarios, disminuye costos de alquiler y mantenimiento y acelera el avance general del proyecto.
| MODEL | WORKING HEIGHT | HORIZONTAL OUTREACH | LOADBEARING | GRADEABILITY |
|---|---|---|---|---|
| SPA27EJ | 27 m | 14.2 m | 120 kg / 230 kg | 30% |
| SPA27J | 27 m (88'7") | 14.2 m (46'7") | 230 kg (507 lbs) | 30% |
| SPA33HJ | 33 m (108'3.2") | 19 m (62'3.4") | 250 kg (551 lbs) | 37% |
| SPT43HJ | 43 m | 19.5 m | 200 kg | 25° / 47% |
| SPT38HJ | 38 m | 16.5 m | 450 kg | 25° / 47% |
| SPT52HJ | 52 m | 17 m | 200 kg | 20° / 37% |
| Feature / Application | HAMAC Spider Boom Lift (Tracked) | HAMAC Telescopic / Articulating Boom Lift | HAMAC Scissor Lift |
|---|---|---|---|
| Typical working height | 27–52 m high reach for complex sites | Up to 60 m for large open areas | Up to around 18–20 m vertical only |
| Ground / terrain | Uneven ground, soft soil, tight access with outriggers | Firm ground, larger turning space required | Flat, solid slab or finished floors |
| Horizontal outreach | Long up-and-over reach over obstacles | Very long straight or articulated reach | Minimal or no outreach, vertical access only |
| Typical applications | Façade & roof work, atriums, stadiums, tree service | Large construction, industrial plants, infrastructure | Warehouse picking, indoor maintenance on flat floors |
In heavy warehouse and production environments, a rough terrain forklift is used to move large pallet
Consulta Gratuita >
At a construction and demolition waste sorting facility, an HT4010 telehandler and FD40-RT rough terr
Consulta Gratuita >
In a building materials warehouse, an HT6018 telehandler is used to move and stack block and brick pa
