HT3507
Telehandlers
Lifting capacity: 3,500 kg
Max. lift height: 7m
Consult now
Aerial work platforms provide safe, direct access to elevated work areas for construction, installation and maintenance tasks, replacing ladders and scaffolding with a stable powered platform that can be positioned quickly where it is needed.
With a rigid lifting structure and generous platform size, aerial work platforms can carry multiple operators, tools and materials at the same time, supporting continuous work and improving productivity on jobs that require long periods at height.
Available in electric, hybrid and diesel configurations, aerial work platforms can work in clean indoor environments with low noise and zero emissions, or on demanding outdoor and rough‑terrain sites where higher power and stronger traction are required.

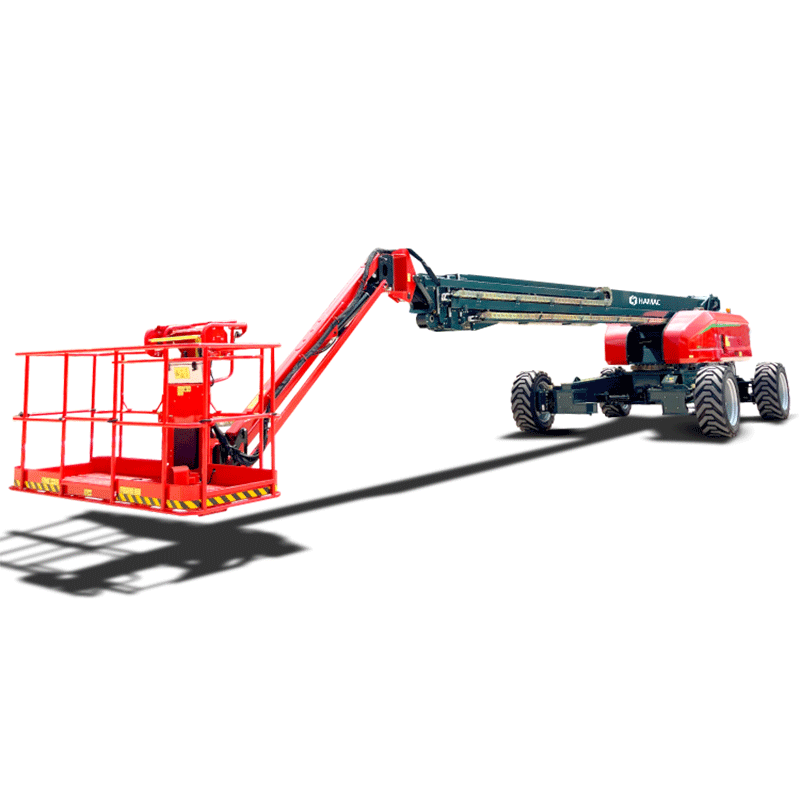

Depending on the model, aerial work platforms offer straight or articulated booms and smooth control systems, allowing operators to position the platform accurately at windows, facades, steel structures and equipment without repeated repositioning of the machine.
Modern aerial work platforms are equipped with load sensing, emergency stop, tilt and overload protection, platform guardrails and standardized control layouts, helping operators stay within safe working limits and reducing the risk of accidents during elevated work.
By combining fast setup, mobile access and stable lifting in one machine, aerial work platforms reduce the number of separate access tools needed on site, shorten project time, lower labor and rental costs, and improve overall efficiency for contractors and facility owners.
| Model | Working Height | Horizontal Outreach | Loadbearing | Gradeability |
|---|---|---|---|---|
| AB10ERJN | 11.62 m (38'1") | 6.3 m (20'8") | 230 kg (507 lbs) | 35% |
| AB13ERJN | 15 m (49'3") | 7.4 m (24'3") | 230 kg (507 lbs) | 25% (2WD) |
| AB15ERJN | 16.8 m (55'2") | 7 m (22'11.6") | 230 kg (507 lbs) | 25% (2WD) |
| AB14EJ | 16 m (52'6") | 7.6 m (24'11") | 230 kg (507 lbs) | 30% |
| AB16EJ | 17.7 m (58'1") | 9.3 m (30'6") | 230 kg (507 lbs) | 30% |
| AB16EJ PLUS | 17.8 m (58'5") | 9 m / 8.1 m / 7 m (29'6" / 26'7" / 23') (Unrestricted / Restricted / Restricted) | 250 kg / 340 kg / 454 kg (551 lbs / 750 lbs / 1,000 lbs) (Unrestricted / Restricted / Restricted) | 40% |
| AB18EJ PLUS | 20.58 m (67'6") | 18.58 m (60'11") | 250 kg / 340 kg (551 lbs / 750 lbs) | 45% |
| AB22EJ PLUS | 23.6 m (77'5") | 13.4 m / 11.9 m / 10.45 m (44'/39'/34'3") | 230 kg (507 lbs) / 340 kg (750 lbs) / 450 kg (1,000 lbs) | 40% |
| AB26EJ PLUS | 27.65 m (90'9") | 19.1 m / 17.0 m (62'8" / 55'9") | 230 kg / 340 kg (507 lbs / 749 lbs) (Unrestricted / Restricted) | 45% |
| Model | Working Height | Horizontal Outreach | Loadbearing | Gradeability |
|---|---|---|---|---|
| AB10J | 12.38 m (40'7") | 5.9 m (19'4") | 250 kg (551 lbs) | 40% |
| AB15J | 16.7 m (54'9.5") | 8.5 m (27'11") | 250 kg (551 lbs) | 30% (2WD) / 40% (4WD) |
| AB15J PLUS | 16.7 m | 8.5 m (27'11") | 300 kg (661 lbs) | 40% |
| AB18J PLUS | 20.58 m (67'6") | 12 m / 10.7 m (39'4" / 35'1") (250 kg / 340 kg) | 340 kg / 250 kg (750 lbs / 551 lbs) (Restricted / Unrestricted) | 40% |
| AB18J | 20.3 m (66'7") | 12.2 m (40') | 250 kg (551 lbs) | 40% |
| AB22J PLUS | 21.6 m (70'10") | 13.35 m / 11.85 m / 10.4 m (43'10" / 38'11" / 34'2") (230 kg / 340 kg / 454 kg) | 454 kg / 340 kg / 230 kg (1,000 lbs / 750 lbs / 507 lbs) (Restricted / Restricted / Unrestricted) | 40% |
| AB26J PLUS | 27.65 m (90'9") | 19.1 m / 17.0 m (62'8" / 55'9") (230 kg / 340 kg) | 230 kg / 340 kg (507 lbs / 749 lbs) (Unrestricted / Restricted) | 45% |
| AB46RJ | 48.6 m (159'5") | 25.5 m (83'8") | 455 kg (1,001 lbs) / 275 kg (606 lbs) | 40% (4WD) |
At farm silos, an agricultural telehandler is used to move grain, bagged feed and other farm material
