HAMAC CSL Series crawler scissor lifts are compact electric tracked aerial work platforms designed for safe and efficient vertical access on uneven terrain. Unlike conventional wheeled scissor lifts, the tracked undercarriage provides improved traction and distributes machine weight across a larger ground-contact area, making the CSL Series suitable for soft ground, gravel, grass, slopes, construction sites, landscaping projects, and outdoor maintenance work.
The CSL Series includes the CSL60 and CSL80 standard crawler scissor lifts, together with CSL60OR and CSL80OR models equipped with automatic self-leveling hydraulic outriggers. With maximum working heights from 6.8m to 8.0m, a rated platform capacity of 230kg, 40% gradeability, and battery-powered operation, these tracked aerial work platforms provide a practical access solution for customers who need mobility beyond smooth indoor floors.

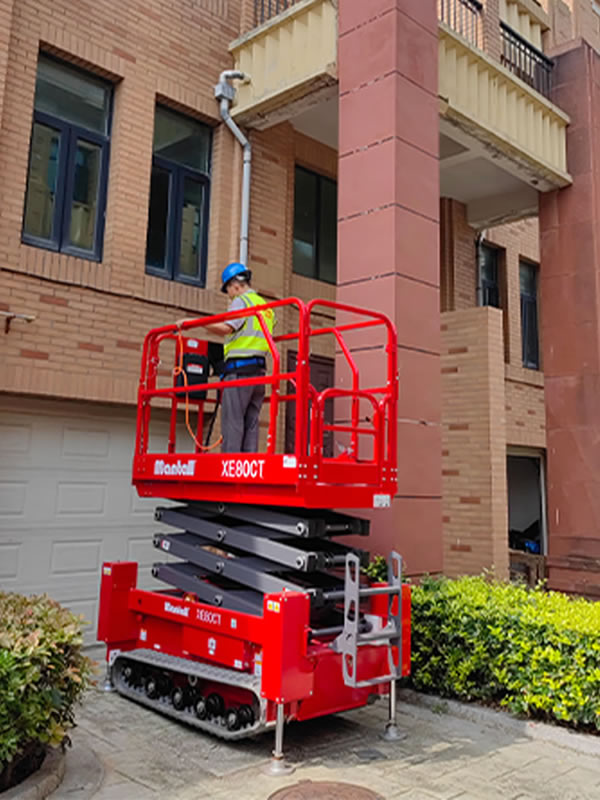

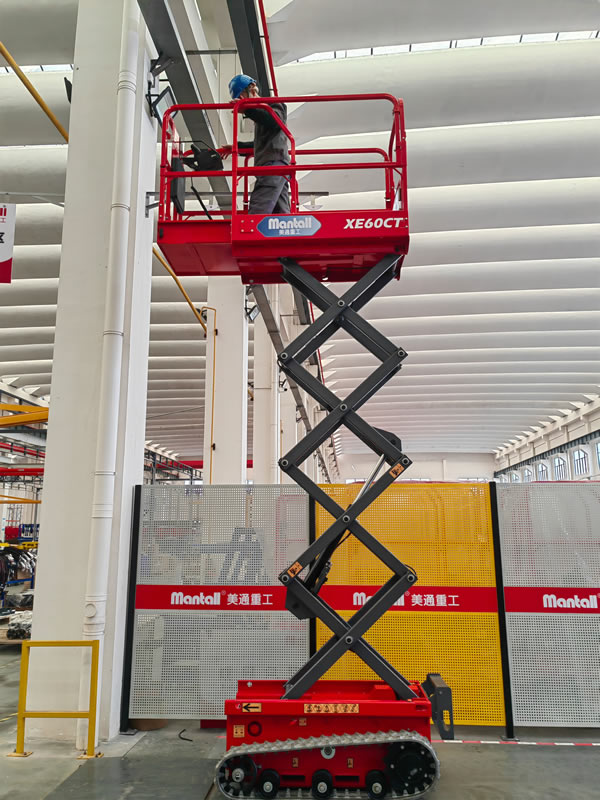

The electric crawler scissor lift uses a robust scissor lifting mechanism to raise operators, tools, and approved materials vertically. Its rubber crawler tracks provide stable movement over uneven or sensitive surfaces where conventional wheel-driven access platforms may have difficulty maintaining traction or may cause more concentrated ground pressure.
CSL60 and CSL80 are designed for compact tracked access work, while the CSL60OR and CSL80OR models add hydraulic outriggers for automatic leveling. The outrigger system can level the machine by up to 4.5° in the front-to-back direction and up to 10° side-to-side, subject to the operator’s manual, ground-bearing conditions, and applicable safety regulations.
Aerial work platforms provide safe, direct access to elevated work areas for construction, installation and maintenance tasks, replacing ladders and scaffolding with a stable powered platform that can be positioned quickly where it is needed.
With a rigid lifting structure and generous platform size, aerial work platforms can carry multiple operators, tools and materials at the same time, supporting continuous work and improving productivity on jobs that require long periods at height.
Available in electric, hybrid and diesel configurations, aerial work platforms can work in clean indoor environments with low noise and zero emissions, or on demanding outdoor and rough‑terrain sites where higher power and stronger traction are required.
Depending on the model, aerial work platforms offer straight or articulated booms and smooth control systems, allowing operators to position the platform accurately at windows, facades, steel structures and equipment without repeated repositioning of the machine.
Modern aerial work platforms are equipped with load sensing, emergency stop, tilt and overload protection, platform guardrails and standardized control layouts, helping operators stay within safe working limits and reducing the risk of accidents during elevated work.
By combining fast setup, mobile access and stable lifting in one machine, aerial work platforms reduce the number of separate access tools needed on site, shorten project time, lower labor and rental costs, and improve overall efficiency for contractors and facility owners.
*Technical specifications, machine weight, standard equipment, optional configuration, outrigger operation, and permitted operating limits may vary by model, destination market, and applicable standard. Confirm final specifications and follow the official operator's manual before ordering or using the machine.

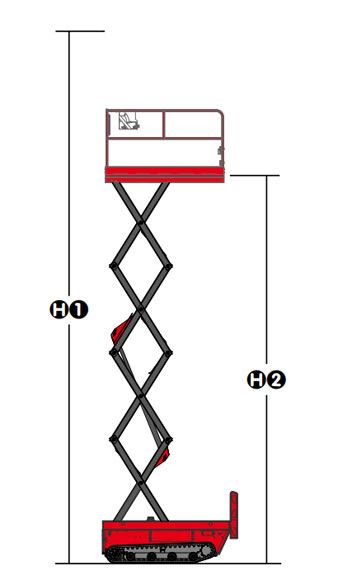

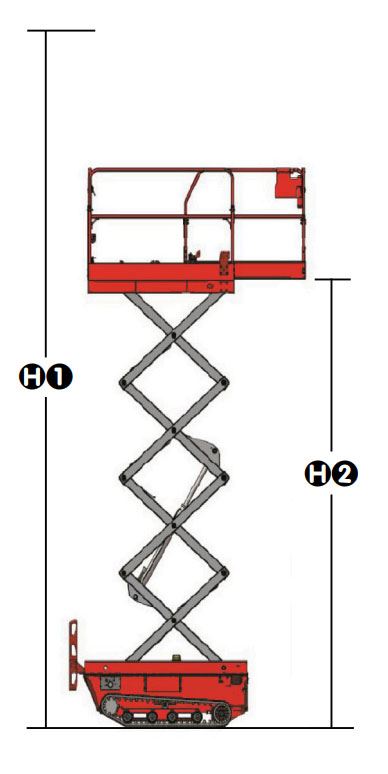

<table class="spec-table" border-collapse:collapse;"=""> Specification CSL60 CSL80 CSL60OR CSL80OR Model Information Original Model XE60CT XE80CT XE60CT OR XE80CT OR Drive Type Electric Tracked Drive Electric Tracked Drive Electric Tracked Drive Electric Tracked Drive Working Range Max. Working Height 6.8m 8.0m 6.8m 8.0m Max. Platform Height 4.8m 6.0m 4.8m 6.0m Platform Extension Length 0.9m 0.9m 0.9m 0.9m Platform Rated Lifting Capacity 230kg 230kg 230kg 230kg Extension Platform Capacity 115kg 115kg 115kg 115kg Platform Dimensions (L × W × H) 1.84 × 0.90 × 1.10m 1.84 × 0.90 × 1.10m 1.84 × 0.90 × 1.10m 1.84 × 0.90 × 1.10m Max. Platform Occupancy 2 persons 2 persons 2 persons 2 persons Dimensions Overall Length × Width 2.26 × 1.01m 2.26 × 1.01m 2.26 × 1.12m 2.26 × 1.12m Stowed Height 2.12m 2.22m 2.12m 2.22m Height with Guardrails Folded 1.75m 1.85m 1.75m 1.85m Ground Clearance 0.13m 0.13m 0.13m 0.13m Crawler Size Y200 × 72 – 49 Sections Y200 × 72 – 49 Sections Y200 × 72 – 49 Sections Y200 × 72 – 49 Sections Performance Lift / Lower Time 24 / 22s 32 / 30s 24 / 22s 32 / 30s Drive Speed, Stowed / Raised 1.7 / 0.7km/h 1.7 / 0.7km/h 1.7 / 0.7km/h 1.7 / 0.7km/h Gradeability 40% 40% 40% 40% Tilt Sensor, Front-to-Back / Side-to-Side 3° / 2° 3° / 2° 3° / 2° 3° / 2° Outrigger Leveling Ability, Front-to-Back / Side-to-Side — — 4.5° / 10° 4.5° / 10° Power and Weight Power Source 24V / 225Ah 24V / 225Ah 24V / 225Ah 24V / 225Ah Hydraulic Tank Capacity 7L 7L 10L 10L Machine Weight 1,140kg 1,235kg 1,445kg 1,525kg*Technical data, standard equipment, optional configuration, ground suitability, permitted slope, and operating limits may vary by model, destination market, and final configuration. Always confirm the final specification and follow the official operator’s manual before purchase or use.
