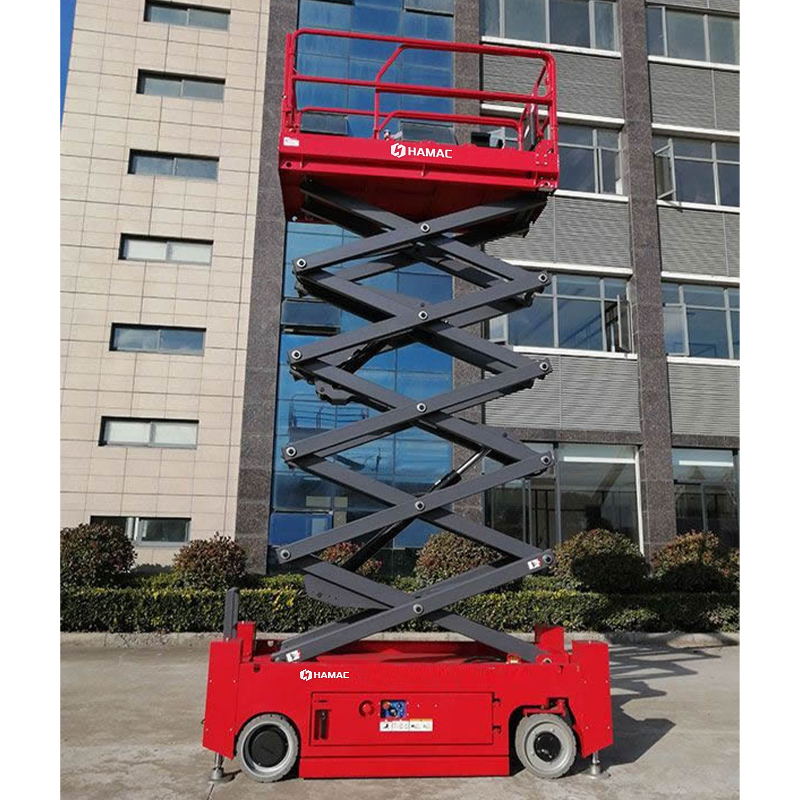

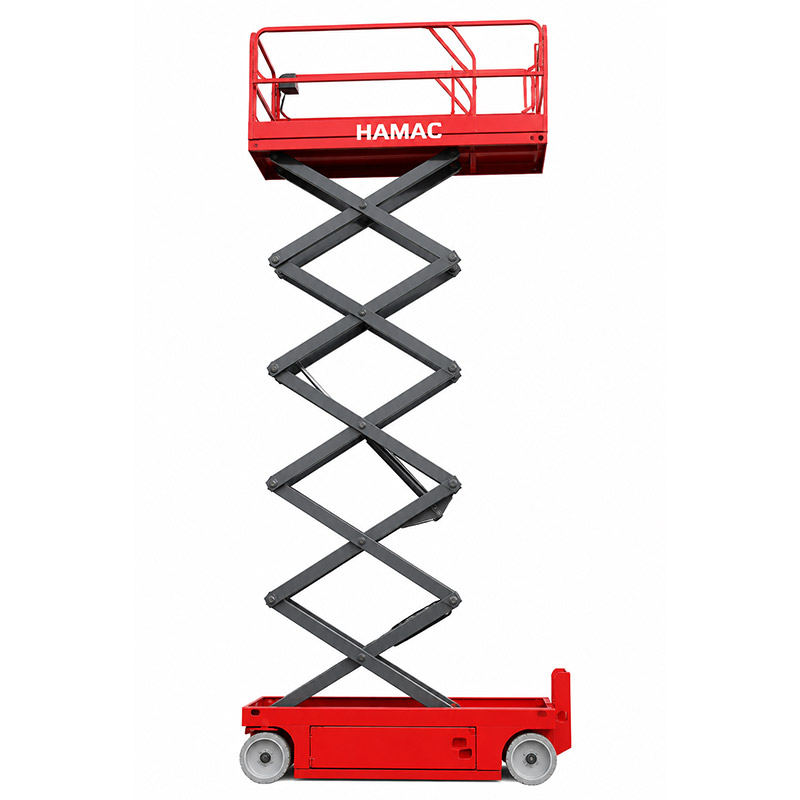

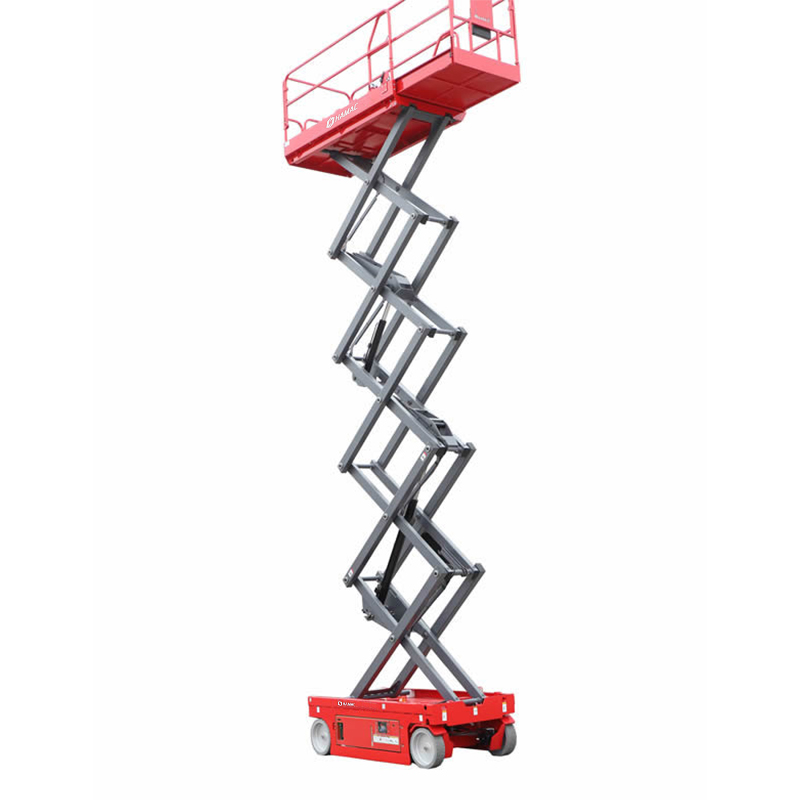

Electric Self-Propelled Scissor Lift

ESL Series 6.5m–16m Aerial Work Platform

HAMAC ESL Series electric self-propelled scissor lifts provide efficient vertical access for indoor maintenance, warehousing, equipment installation, facility management, and outdoor construction work. Powered by maintenance-free battery systems, these electric aerial work platforms offer low-noise operation and zero local exhaust emissions, making them suitable for workplaces where clean and quiet access equipment is required.

The ESL Series covers working heights from 6.5m to 16m and platform capacities from 227kg to 550kg. Customers can select from four configurations: the ultra-compact ESL-N Series for confined access, the zero-turn ESL-C Series for narrow indoor aisles, the high-capacity ESL-W Series for larger crews and tools, and the ESL-W/OR Series with automatic self-leveling hydraulic outriggers for uneven ground and moderate slopes.

Working Height:6.5-16m

Lifting Capacity:227-550kg

Overall Width:0.77m-1.25m

Self-Propelled-Technical Specifications Overview

Get a Quote → Ask for Details →

Electric self-propelled scissor lifts use a vertical lifting mechanism to raise operators, tools, and materials to the required working height. The self-propelled drive system allows operators to move the machine directly from the platform, improving productivity by reducing repeated lowering, repositioning, and lifting cycles.

All ESL Series models are designed with safety and operating convenience in mind. Depending on the series and final configuration, available equipment includes proportional controls, emergency lowering, tilt alarms, pothole protection, non-marking tires, extended platforms, onboard diagnostic systems, foldable guardrails, maintenance support bars, and optional overload sensors, platform power sockets, work lights, and anti-collision systems.

Product Advantages

01 Versatile access at height

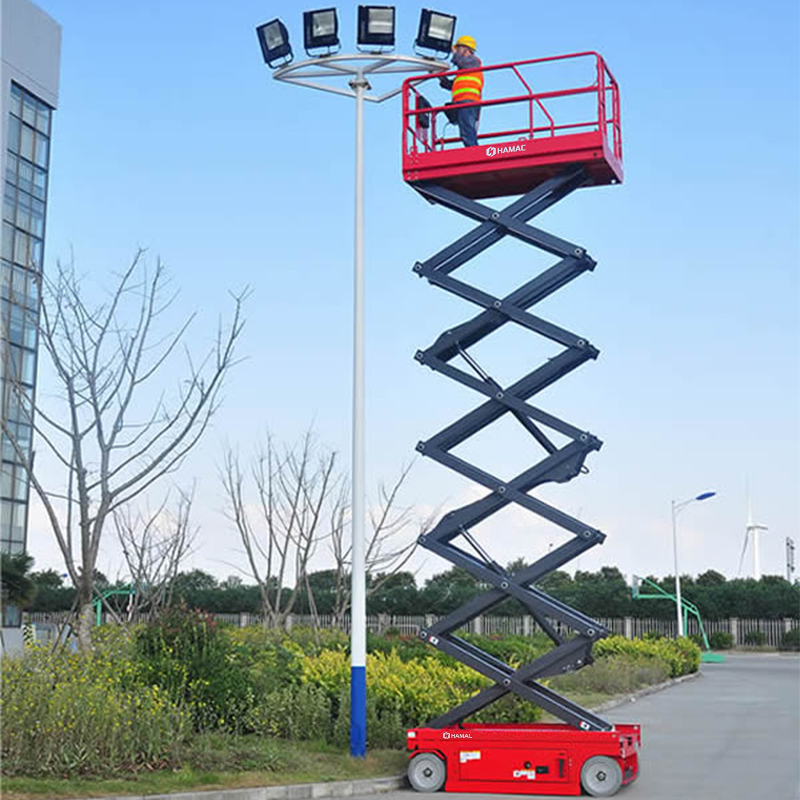

Aerial work platforms provide safe, direct access to elevated work areas for construction, installation and maintenance tasks, replacing ladders and scaffolding with a stable powered platform that can be positioned quickly where it is needed.

02 Stable vertical lifting and large platform

With a rigid lifting structure and generous platform size, aerial work platforms can carry multiple operators, tools and materials at the same time, supporting continuous work and improving productivity on jobs that require long periods at height.

03 Multiple drive types for different environments

Available in electric, hybrid and diesel configurations, aerial work platforms can work in clean indoor environments with low noise and zero emissions, or on demanding outdoor and rough‑terrain sites where higher power and stronger traction are required.

04 Precise positioning and flexible outreach

Depending on the model, aerial work platforms offer straight or articulated booms and smooth control systems, allowing operators to position the platform accurately at windows, facades, steel structures and equipment without repeated repositioning of the machine.

05 Integrated safety and control systems

Modern aerial work platforms are equipped with load sensing, emergency stop, tilt and overload protection, platform guardrails and standardized control layouts, helping operators stay within safe working limits and reducing the risk of accidents during elevated work.

06 Efficiency and cost savings on site

By combining fast setup, mobile access and stable lifting in one machine, aerial work platforms reduce the number of separate access tools needed on site, shorten project time, lower labor and rental costs, and improve overall efficiency for contractors and facility owners.

Compatible Attachments

Rallet fork

Bucket

Crane Arm

Mixed barrel

Bale Fork

Snow Blower

Grapple Bucket

Mixed Bucket

Road Sweeper

Mixed barrel

Crass Cutter

Application Scenarios

Construction Sites

Agriculture & Farming

Industrial Logistics

Municipal Works

Mining & Energy

Technical Specifications

Specification	ESL65N	ESL80N	ESL80C	ESL100C	ESL80W	ESL100W	ESL120W	ESL140W	ESL160W	ESL160W II	ESL80OR	ESL100OR	ESL120OR	ESL140OR	ESL160OR
Model Information
Original Model	X65N	XE80N	XE80C	XE100C	XE80W	XE100W	XE120W	XE140W	XE160W	XE160W (II)	XE80W/OR	XE100W/OR	XE120W/OR	XE140W/OR	XE160W/OR
Series	N Series	N Series	C Series	C Series	W Series	W Series	W Series	W Series	W Series	W Series	W/OR Series	W/OR Series	W/OR Series	W/OR Series	W/OR Series
Working Range
Max. Working Height	6.5 m	7.8 m	8 m	10 m	8 m	10 m	12 m	14 m	16 m	15.7 m	8 m	10 m	12 m	14 m	16 m
Max. Platform Height	4.5 m	5.8 m	6 m	8 m	6 m	8 m	10 m	12 m	14 m	13.7 m	6 m	8 m	10 m	12 m	14 m
Platform
Rated Lifting Capacity	270 kg	230 kg	350 kg	230 kg	550 kg	450 kg	400 kg	350 kg	230 kg	227 kg	550 kg	450 kg	400 kg	350 kg	230 kg
Extension Platform Capacity	115 kg	115 kg	120 kg	120 kg	120 kg	120 kg	120 kg	120 kg	120 kg	113 kg	120 kg	100 kg	100 kg	100 kg	100 kg
Platform Extension Length	0.90 m	0.90 m	1.00 m	1.00 m	1.00 m	1.00 m	1.00 m	1.00 m	1.00 m	0.90 m	1.00 m	1.00 m	1.00 m	1.00 m	1.00 m
Platform Dimensions (L × W × H)	1.64 × 0.75 × 1.10 m	1.64 × 0.75 × 1.10 m	2.25 × 0.80 × 1.10 m	2.25 × 0.80 × 1.10 m	2.25 × 1.14 × 1.12 m	2.25 × 1.14 × 1.12 m	2.25 × 1.14 × 1.12 m	2.25 × 1.14 × 1.12 m	2.25 × 1.14 × 1.12 m	2.64 × 1.12 × 1.10 m	2.30 × 1.15 × 1.10 m	2.30 × 1.15 × 1.10 m	2.30 × 1.15 × 1.10 m	2.30 × 1.15 × 1.10 m	2.30 × 1.15 × 1.10 m
Platform Length with Extension	2.54 m	2.54 m	3.20 m	3.20 m	3.30 m	3.30 m	3.30 m	3.30 m	3.30 m	3.54 m	3.30 m	3.30 m	3.30 m	3.30 m	3.30 m
Dimensions and Performance
Overall Length × Width	1.93 × 0.77 m	1.93 × 0.77 m	2.50 × 0.80 m	2.50 × 0.80 m	2.51 × 1.20 m	2.51 × 1.20 m	2.51 × 1.20 m	2.51 × 1.20 m	2.51 × 1.20 m	2.84 × 1.25 m	2.55 × 1.20 m	2.80 × 1.20 m	2.80 × 1.20 m	2.80 × 1.20 m	2.80 × 1.20 m
Stowed Height	2.04 m	2.13 m	2.17 m	2.30 m	2.19 m	2.31 m	2.43 m	2.55 m	2.67 m	2.68 m	2.25 m	2.40 m	2.53 m	2.65 m	2.82 m
Wheelbase	1.32 m	1.32 m	1.85 m	1.85 m	1.85 m	1.85 m	1.85 m	1.85 m	1.85 m	2.21 m	1.68 m	1.88 m	1.88 m	1.88 m	1.88 m
Ground Clearance	0.06 m	0.06 m	0.10 m	0.10 m	0.10 m	0.10 m	0.10 m	0.10 m	0.10 m	0.15 m	0.15 m	0.14 m	0.14 m	0.14 m	0.14 m
Inside Turning Radius	0.80 m	0.80 m	0 m	0 m	0 m

The N Series is designed for ultra-compact applications, the C Series features a zero-turning-radius design, the W Series offers wider platforms and higher load capacities, and the W/OR Series is equipped with automatic self-leveling hydraulic outriggers for operation on moderate slopes and uneven ground.

Product Overview Product Advantages Compatible Attachments Application Scenarios Technical Specifications

Free Consultation →

Common FAQs

What is an electric self-propelled scissor lift? −

An electric self-propelled scissor lift is a battery-powered mobile elevating work platform designed to lift operators, tools, and materials vertically. It can be driven from the platform at controlled speeds, helping users complete maintenance, installation, warehousing, and construction tasks efficiently at height. HAMAC ESL Series models offer working heights from 6.5m to 16m.

What is the difference between a self-propelled scissor lift and a manual scissor lift? +

A self-propelled scissor lift has an onboard drive system, allowing the operator to move the machine from the platform without pushing or towing it between work areas. A manual or mobile scissor lift must be repositioned from ground level. Self-propelled electric scissor lifts improve productivity where work is spread across a large warehouse, factory, commercial building, or maintenance site.

What working heights are available in the ESL electric scissor lift range? +

The HAMAC ESL Series covers maximum working heights from 6.5m to 16m. The compact ESL-N Series includes 6.5m and 7.8m models, the ESL-C Series includes 8m and 10m models, and the ESL-W and ESL-W/OR Series cover 8m, 10m, 12m, 14m, and 16m working-height options.

How do I choose the right electric scissor lift working height? +

Select the working height according to the highest task position, while also considering operator reach, tools, materials, ceiling obstructions, and safe clearance requirements. The maximum working height normally includes the platform height plus an approximate 2m operator reach allowance. For example, an ESL100 model with an 8m platform height provides a 10m maximum working height.

Which ESL scissor lift is suitable for narrow aisles and confined spaces? +

The ESL-N Series and ESL-C Series are suitable choices for confined spaces. ESL-N models feature a compact 0.77m overall width for tight access areas, while ESL-C models provide a zero inside turning radius for maneuvering in narrow warehouse aisles, retail stores, workshops, and logistics centers.

What does zero inside turning radius mean on an electric scissor lift? +

A zero inside turning radius means the machine can turn around its inner wheel position without requiring additional inside clearance. This feature is especially useful in tight indoor environments, such as warehouse aisles, production lines, storage areas, and facility-maintenance corridors. ESL-C, ESL-W, and ESL-W/OR models are designed with zero inside turning radius.

What is the maximum lifting capacity of the ESL Series? +

ESL Series platform capacity ranges from 227kg to 550kg, depending on the model. ESL80W and ESL80OR provide up to 550kg rated lifting capacity, making them suitable for multiple operators, installation tools, maintenance equipment, and approved materials. Always include the combined weight of personnel, tools, cables, accessories, and materials when checking platform capacity.

What is the difference between the ESL-N, ESL-C, ESL-W, and ESL-W/OR Series? +

The ESL-N Series is designed for ultra-compact access applications. The ESL-C Series is designed for zero-turn maneuverability in narrow indoor spaces. The ESL-W Series offers wider platforms and higher capacities for larger crews, tools, and materials. The ESL-W/OR Series adds 4-wheel drive and automatic self-leveling hydraulic outriggers for suitable uneven-ground and moderate-slope applications.

Can an electric self-propelled scissor lift be used indoors? +

Yes. Battery-powered electric scissor lifts are widely used indoors because they produce zero local exhaust emissions and operate with relatively low noise. Typical indoor applications include warehouses, factories, shopping malls, airports, exhibition halls, hotels, hospitals, schools, logistics centers, and equipment-maintenance facilities.

Can the ESL-W/OR electric scissor lift work on uneven ground? +

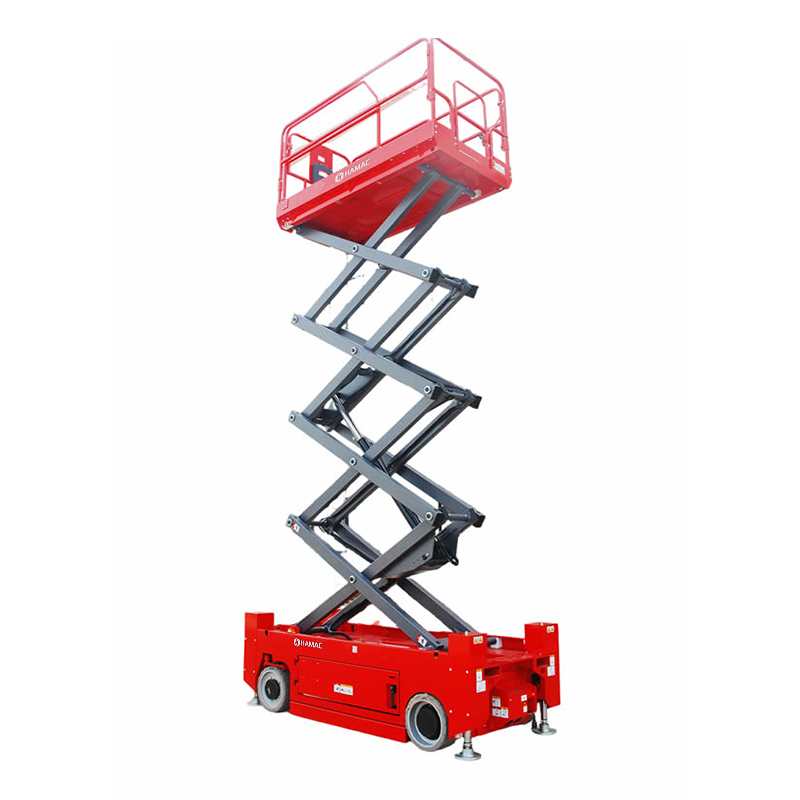

The ESL-W/OR Series is designed for suitable uneven-ground applications because it features automatic self-leveling hydraulic outriggers and 4-wheel drive. Depending on the model, the outriggers can level the machine by up to 4.5° front-to-back and up to 10° side-to-side. The machine must be set up only on ground that can support the equipment load and must be operated according to the official operator's manual.

What does gradeability mean for an electric scissor lift? +

Gradeability is the maximum slope the machine can climb while stowed under specified conditions. ESL Series models offer gradeability from 25% to 35%, depending on the model. Gradeability is intended for travel with the platform lowered; it does not mean the lift may be elevated or used on a slope without proper leveling and compliance with operating instructions.

Can an ESL scissor lift travel while the platform is raised? +

ESL self-propelled scissor lifts can travel at a reduced raised speed, typically around 0.7km/h, subject to the model and operating conditions. Raised travel is permitted only on firm, level surfaces and within the limits stated in the operator's manual. Operators should check for slopes, holes, debris, overhead obstructions, and other site hazards before moving the machine.

Why is a slide-out extension platform important? +

A slide-out extension platform increases the available workspace and helps operators reach locations beyond the main platform edge. ESL models provide extension lengths of 0.9m or 1.0m, depending on the configuration. This reduces the need to reposition the machine frequently during ceiling work, racking maintenance, electrical installation, façade work, cleaning, and mechanical service.

What safety features are available on ESL electric scissor lifts? +

Standard safety equipment may include an emergency lowering system, automatic braking system, tilt alarm, pothole protection, non-marking tires, foldable guardrails, safety maintenance support bar, proportional controls, hour meter, onboard diagnostic system, fault alarm, and maintenance-free battery. Available options may include an overload sensor, airline to platform, platform power socket, work lights, anti-collision system, and top-limit protection auto-stop device.

What battery system is used by the ESL electric scissor lift range? +

The referenced ESL Series uses a 4 × 6V / 225Ah battery configuration. The battery-powered design supports low-noise operation and zero local emissions, making the machines suitable for indoor environments and sites with emission restrictions. Actual operating time depends on lifting cycles, travel distance, load, temperature, battery condition, and site conditions.

What should I confirm before buying an electric self-propelled scissor lift? +

Before selecting an ESL electric scissor lift, confirm the required working height, total platform load, number of operators, platform extension requirement, available aisle width, stowed dimensions, floor bearing capacity, ground condition, slope, transport method, local certification requirements, and preferred optional equipment. HAMAC can recommend a suitable ESL-N, ESL-C, ESL-W, or ESL-W/OR model based on your application.

*Technical data, standard equipment, optional configuration, machine weight, and operating limits may vary by model, applicable standard, and destination market. Please confirm the final specification and follow the official operator's manual before purchase or use.
