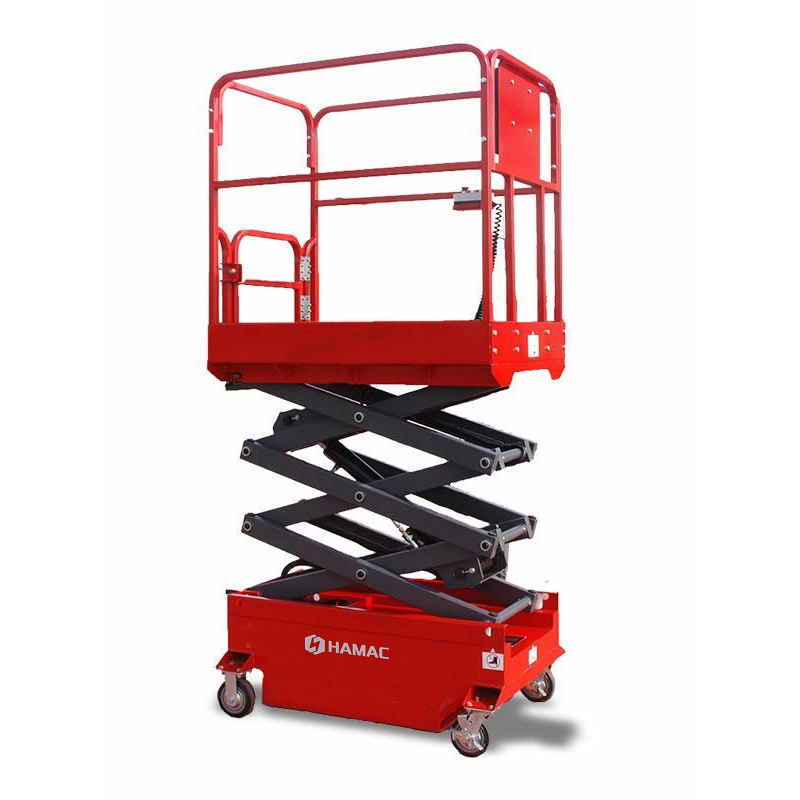

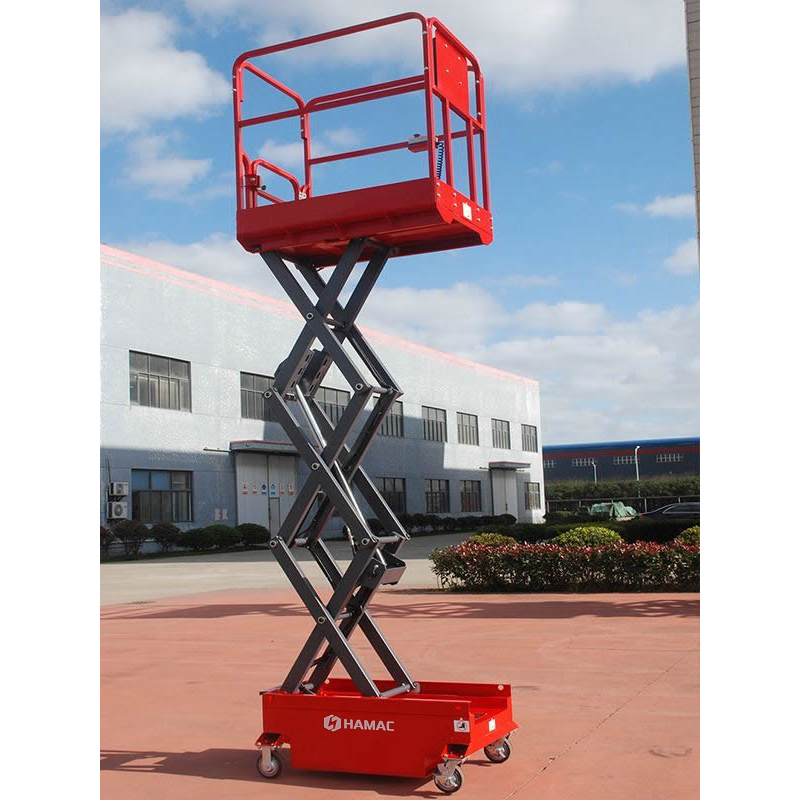

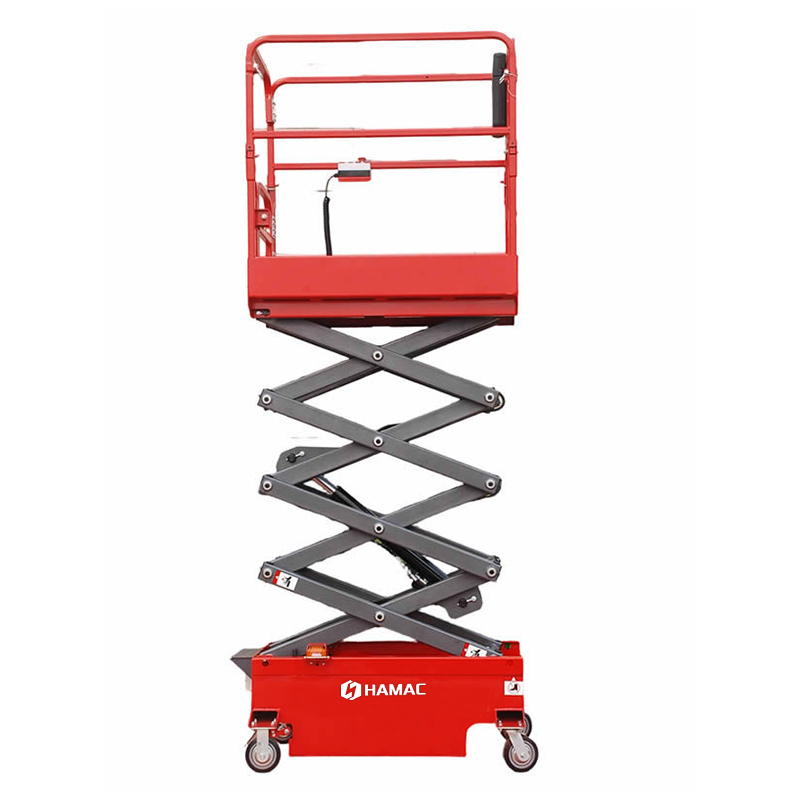

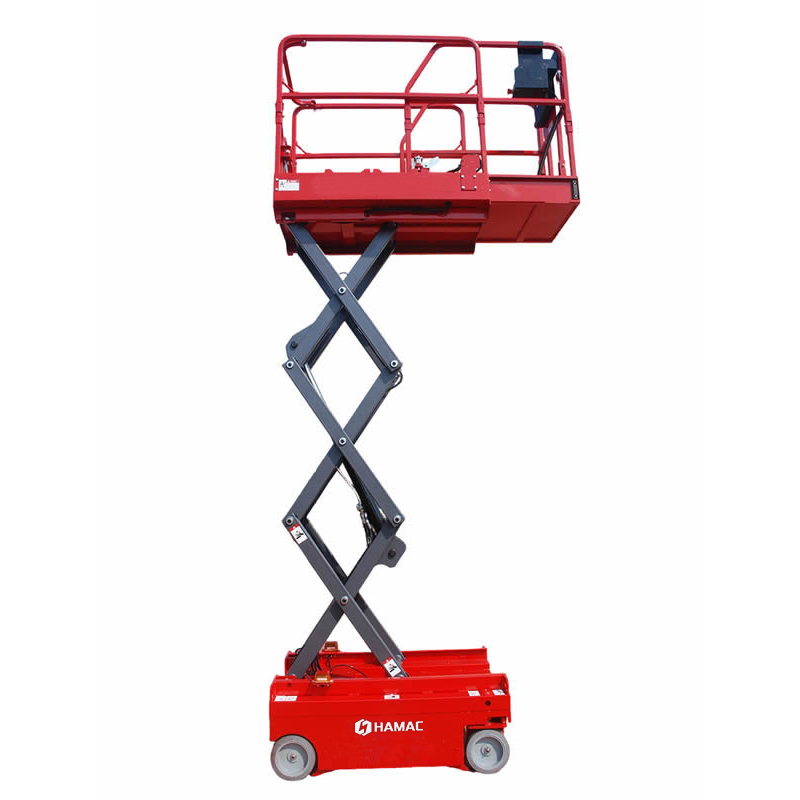

HAMAC Mini Electric Scissor Lifts are compact, lightweight, and efficient aerial work platforms designed for safe vertical access in confined indoor spaces. The series includes SL50MINI, SL60MINI, SL50MINI PLUS, and SL60MINI PLUS, offering maximum working heights from 5 m to 6.4 m and a rated platform capacity of 240 kg. With a narrow 0.76 m overall width, these compact scissor lifts can pass through many standard doorways and are suitable for elevators, narrow aisles, and multi-story buildings.

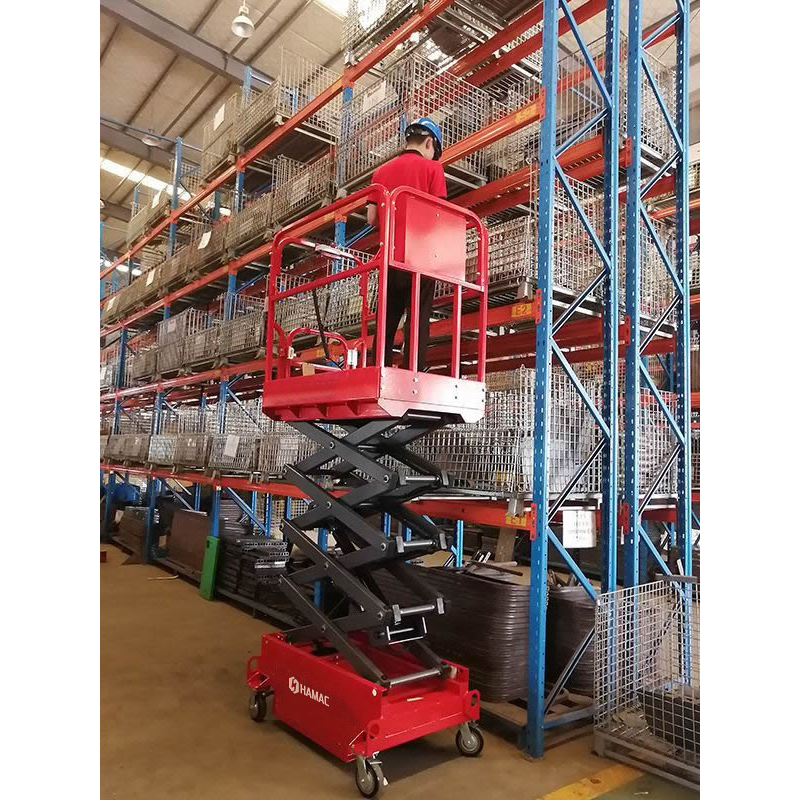

The HAMAC SL MINI series is an ideal alternative to ladders and scaffolding for low-level aerial work. Its compact chassis, small turning area, and lightweight design allow operators to move efficiently around warehouses, retail stores, factories, hotels, airports, hospitals, and commercial buildings. The electric power system delivers quiet, emission-free operation, making these mini scissor lifts especially suitable for indoor environments where noise and exhaust emissions must be controlled.
The standard SL50MINI and SL60MINI models provide 5 m and 6 m maximum working heights respectively. With machine weights from 480 kg to 550 kg, they are easy to transport and suitable for daily tasks such as cleaning, decoration, shelf stocking, lighting installation, ceiling maintenance, and equipment inspection.
Aerial work platforms provide safe, direct access to elevated work areas for construction, installation and maintenance tasks, replacing ladders and scaffolding with a stable powered platform that can be positioned quickly where it is needed.
With a rigid lifting structure and generous platform size, aerial work platforms can carry multiple operators, tools and materials at the same time, supporting continuous work and improving productivity on jobs that require long periods at height.
Available in electric, hybrid and diesel configurations, aerial work platforms can work in clean indoor environments with low noise and zero emissions, or on demanding outdoor and rough‑terrain sites where higher power and stronger traction are required.
Depending on the model, aerial work platforms offer straight or articulated booms and smooth control systems, allowing operators to position the platform accurately at windows, facades, steel structures and equipment without repeated repositioning of the machine.
Modern aerial work platforms are equipped with load sensing, emergency stop, tilt and overload protection, platform guardrails and standardized control layouts, helping operators stay within safe working limits and reducing the risk of accidents during elevated work.
By combining fast setup, mobile access and stable lifting in one machine, aerial work platforms reduce the number of separate access tools needed on site, shorten project time, lower labor and rental costs, and improve overall efficiency for contractors and facility owners.
* “—” means that the specification was not provided on the original source page. Specifications and configurations may vary by destination market and final machine configuration.
| Specification | SL50MINI | SL60MINI | SL50MINI PLUS | SL60MINI PLUS |
|---|---|---|---|---|
| Model Information | ||||
| Original Model | XEM-50MINI | XEM-60MINI | XE50MINI/ED PLUS | XE60MINI/ED PLUS |
| Drive Type | Electric Self-Propelled | Electric Self-Propelled | Electric Self-Propelled | Electric Self-Propelled |
| Working Range | ||||
| Max. Working Height | 5.00 m | 6.00 m | 5.40 m | 6.40 m |
| Max. Platform Height | 3.00 m | 4.00 m | 3.40 m | 4.40 m |
| Platform | ||||
| Rated Lifting Capacity | 240 kg | 240 kg | 240 kg | 240 kg |
| Extension Platform Capacity | — | — | 100 kg | 100 kg |
| Platform Dimensions (L × W × H) | 1.15 × 0.76 × 1.10 m | 1.15 × 0.76 × 1.10 m | 1.28 × 0.76 × 1.10 m | 1.28 × 0.76 × 1.10 m |
| Platform Extension Length | — | — | 0.55 m | 0.55 m |
| Platform Length with Extension | — | — | 1.83 m | 1.83 m |
| Platform Skirting Board Height | 0.15 m | 0.15 m | 0.17 m | 0.17 m |
| Max. Platform Occupancy | 2 persons | 2 persons | 2 persons | 2 persons |
| Dimensions | ||||
| Overall Length × Width | 1.37 × 0.76 m | 1.37 × 0.76 m | 1.49 × 0.76 m | 1.49 × 0.76 m |
| Stowed Height | 1.85 m | 1.94 m | 1.95 m | 2.03 m |
| Height with Guardrails Folded | — | — | 1.50 m | 1.59 m |
| Wheelbase | 1.07 m | 1.07 m | 1.05 m | 1.05 m |
| Ground Clearance | 0.06 m | 0.06 m | 0.06 m | 0.06 m |
| Ground Clearance with Pothole Protection Deployed | — | — | 0.015 m | 0.015 m |
| Performance | ||||
| Inside Turning Radius | — | — | 0.35 m | 0.35 m |
| Lift / Lower Time | 28 / 24 s | 35 / 18 s | 20 / 17 s | 23 / 19 s |
| Drive Speed (Stowed) | — | — | 3.0 km/h | 3.0 km/h |
| Drive Speed (Raised) | — | — | 0.8 km/h | 0.8 km/h |
| Gradeability | — | — | 25% | 25% |
| Tilt Sensor (Front-to-Back / Side-to-Side) | 2° / 1° | 2° / 1° | 3° / 2° | 3° / 2° |
| Hydraulic and Tires | ||||
| Hydraulic Tank Capacity | 2 L | 2 L | 2 L | 2 L |
| Non-Marking Tires | 150 mm | 150 mm | 230 mm | 230 mm |
| Power and Weight | ||||
| Power Source | 12 V / 100 Ah | 12 V / 100 Ah | 24 V | 24 V |
| Machine Weight | 480 kg | 550 kg | 760 kg | 820 kg |
*All model names have been standardized with the SL prefix. Technical data, standard equipment, optional configuration, and operating limits may vary by model and destination market. Please confirm the final specification before purchase or use.
