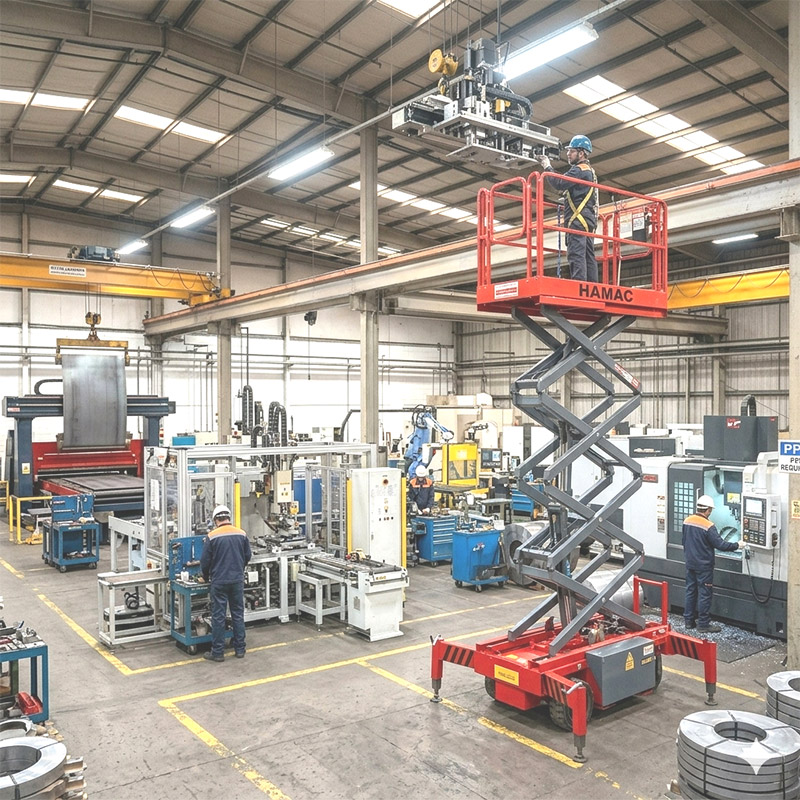

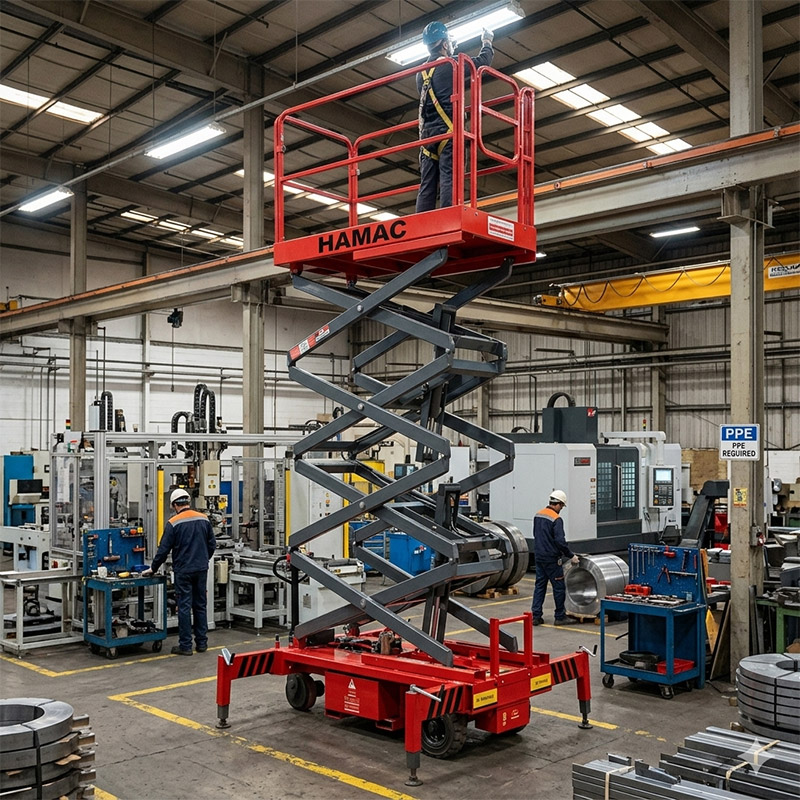

HAMAC MSL Series mobile electric scissor lifts are designed to safely raise operators, tools, and materials for indoor and outdoor work at height. Covering maximum working heights from 5m to 18m, the MSL range provides practical vertical access for equipment installation, building maintenance, warehousing, factory operations, electrical work, mechanical service, painting, cleaning, and construction projects.
The MSL Series combines a stable hydraulic scissor mechanism with a mobile chassis, screw support leveling devices, emergency lowering functions, and rain-proof control equipment. Customers can select standard S models with capacities from 300kg to 450kg or high-capacity H models with up to 1,000kg platform capacity. This makes the MSL range suitable for both personnel access and projects that require lifting heavier tools, installation materials, or equipment.
A mobile electric scissor lift is a compact vertical lifting platform that raises a work deck directly upward through a scissor-arm structure. Compared with ladders, scaffolding, and manually adjusted access equipment, a mobile scissor lift provides a more stable work platform and allows operators to carry approved tools and materials to the required working level.
The MSL Series includes models from the compact MSL50S through the higher-reach MSL180S, plus high-capacity MSL80H, MSL110H, and MSL140H models. The platform capacities range from 300kg to 1,000kg, and platform sizes increase with working height to provide practical workspace for different application requirements.

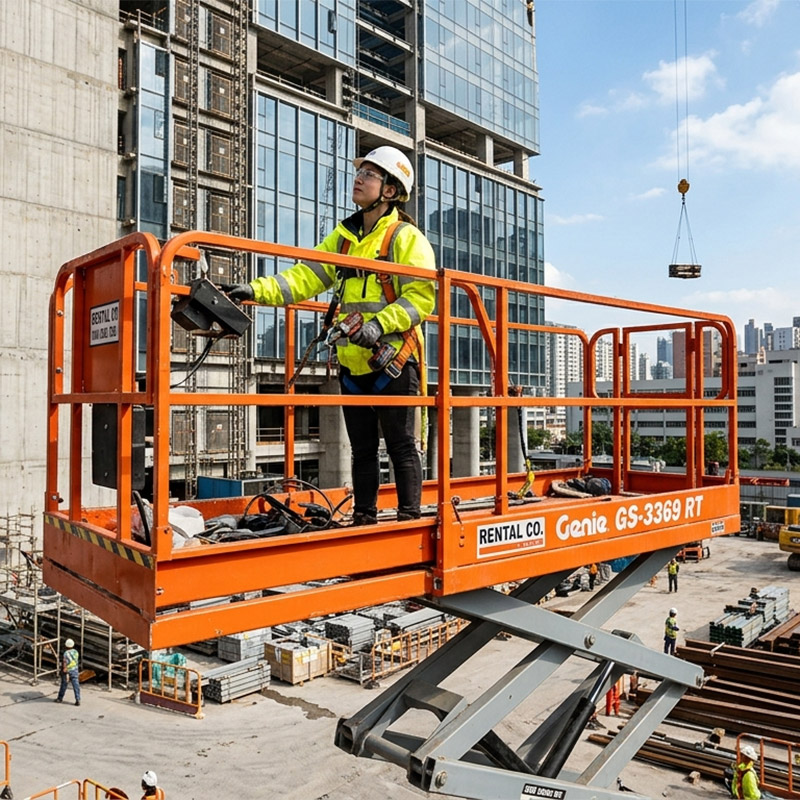

Aerial work platforms provide safe, direct access to elevated work areas for construction, installation and maintenance tasks, replacing ladders and scaffolding with a stable powered platform that can be positioned quickly where it is needed.
With a rigid lifting structure and generous platform size, aerial work platforms can carry multiple operators, tools and materials at the same time, supporting continuous work and improving productivity on jobs that require long periods at height.
Available in electric, hybrid and diesel configurations, aerial work platforms can work in clean indoor environments with low noise and zero emissions, or on demanding outdoor and rough‑terrain sites where higher power and stronger traction are required.
Depending on the model, aerial work platforms offer straight or articulated booms and smooth control systems, allowing operators to position the platform accurately at windows, facades, steel structures and equipment without repeated repositioning of the machine.
Modern aerial work platforms are equipped with load sensing, emergency stop, tilt and overload protection, platform guardrails and standardized control layouts, helping operators stay within safe working limits and reducing the risk of accidents during elevated work.
By combining fast setup, mobile access and stable lifting in one machine, aerial work platforms reduce the number of separate access tools needed on site, shorten project time, lower labor and rental costs, and improve overall efficiency for contractors and facility owners.
| Specification | MSL50S | MSL80S | MSL95S | MSL110S | MSL130S | MSL140S | MSL160S | MSL180S | MSL80H | MSL110H | MSL140H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Range | |||||||||||
| Max. Working Height | 5m | 8m | 9.45m | 11m | 13m | 14m | 16m | 18m | 8m | 11m | 14m |
| Max. Platform Height | 3m | 6m | 7.45m | 9m | 11m | 12m | 14m | 16m | 6m | 9m | 12m |
| Platform | |||||||||||
| Lift Capacity | 450kg | 450kg | 450kg | 450kg | 450kg | 450kg | 450kg | 300kg | 1,000kg | 1,000kg | 1,000kg |
| Platform Size (L × W) | 1.30 × 0.70m | 1.85 × 0.88m | 1.80 × 1.00m | 1.80 × 1.00m | 2.10 × 1.15m | 2.45 × 1.35m | 2.45 × 1.35m | 2.70 × 1.50m | 1.80 × 1.00m | 1.80 × 1.25m | 2.45 × 1.35m |
| Performance | |||||||||||
| Raising Time | 30s | 54s | 72s | 80s | 88s | 90s | 120s | 130s | 80s | 108s | 128s |
| Weight | |||||||||||
| Machine Weight | 450kg | 650kg | 1,100kg | 1,260kg | 1,380kg | 1,850kg | 2,150kg | 2,680kg | 950kg | 1,680kg | 2,100kg |
*Technical data, power supply, standard equipment, optional configuration, platform capacity, final dimensions, and operating limits may vary by model and destination market. Please confirm the final specification and follow the official operator's manual before purchase or use.
