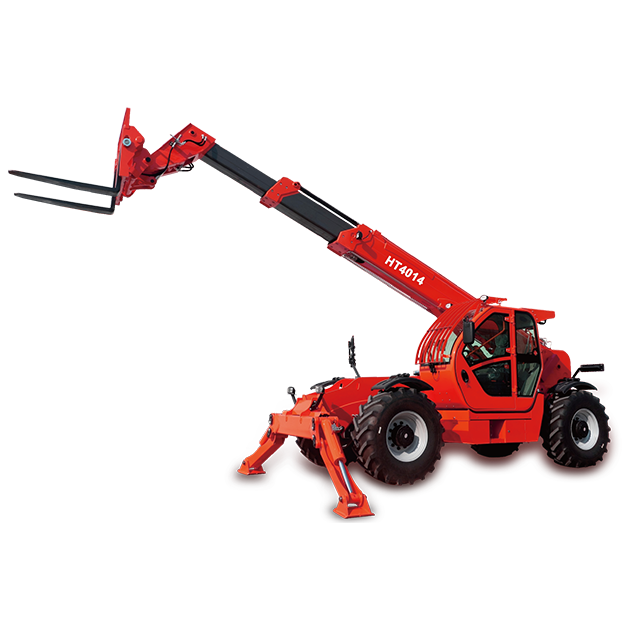

HT4014
Telehandlers
Lifting capacity: 4,000 kg
Max. lift height: ≈14.0 m
Consult now

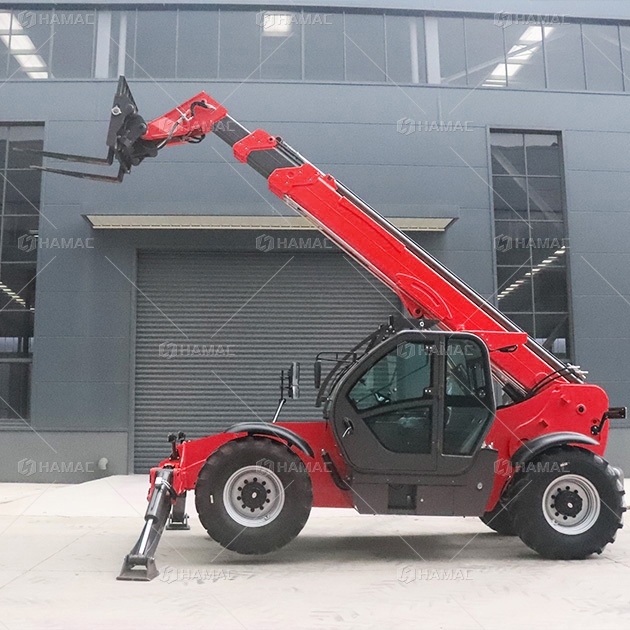

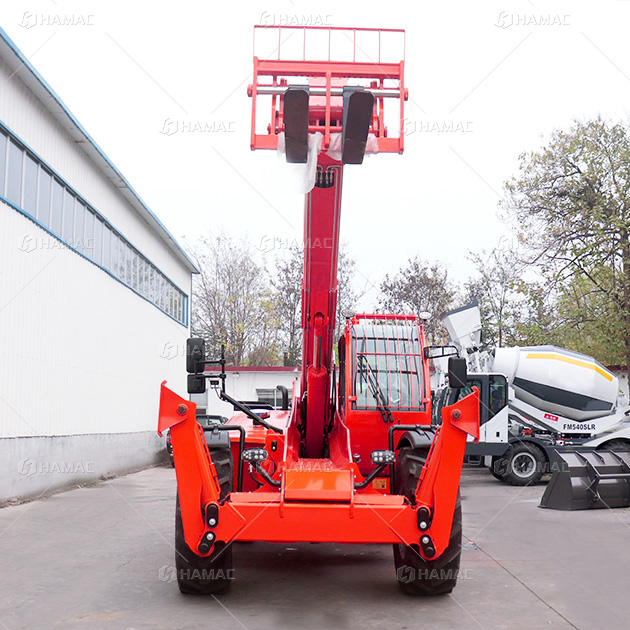

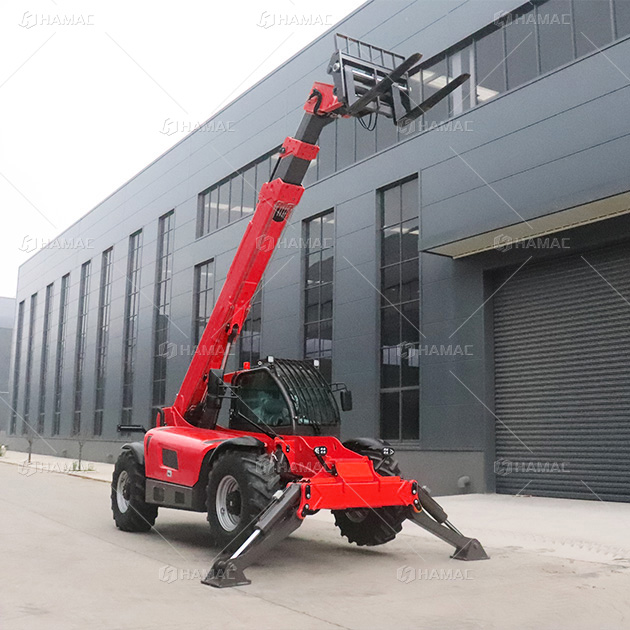

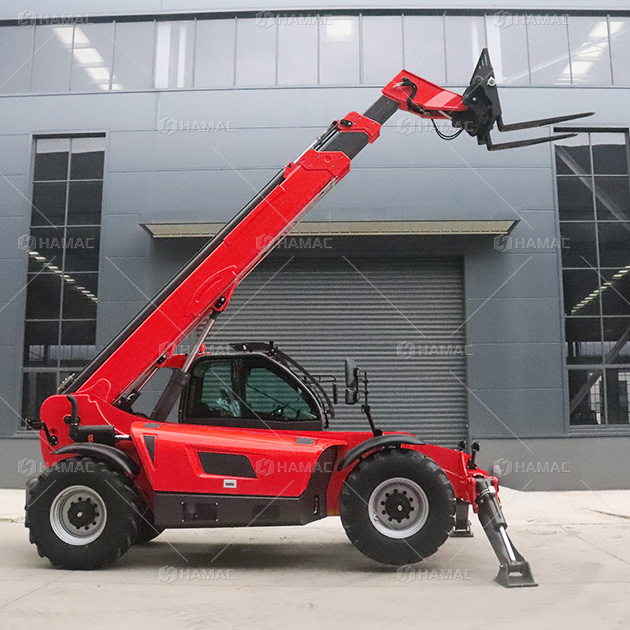

The HAMAC HT4014 is a 4 ton telehandler with a 14 m telescopic boom, tailored to heavy materials on mid‑height building and industrial projects. Its boom reach allows direct placement of pallets, precast panels and structural components onto elevated platforms, roof edges and scaffolding levels, simplifying logistics and reducing double‑handling. A rugged 4WD running gear and tuned boom controls maintain stability and smooth operation when working close to capacity at height.
With forks, buckets, lifting jibs and work platforms, the HT4014 telehandler can take over many daily lifting, loading and light aerial work tasks on site. It is an excellent choice for general contractors, industrial plants and rental fleets requiring a telehandler that balances high capacity, practical reach and maneuverability. For owners who need a single machine to cover most mid‑height, heavy‑lift jobs on rough terrain, HT4014 delivers strong, reliable performance.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 4000 kg |
| Max. lifting height | 13.80 m | |
| Max. outreach | 7.00 m | |
| Weight and dimensions | Overall length to carriage | 6.40 m |
| Length to face of forks | 7.62 m | |
| Min transport size | 5.60 m | |
| Overall width | 2.35 m | |
| Track width | 1.95 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.60 m | |
| Ground clearance | 0.38 m | |
| Overall cab width | 0.84 m | |
| Tilt‑up angle | 12 ° | |
| Tilt‑down angle | 90 ° | |
| External turning radius (over tyres) | 4.10 m | |
| Unladen weight (with fork) | 13000 kg | |
| Tires type | Tubeless | |
| Standard tires | 440/80‑24 | |
| Forks length/ width/ section | 1220 mm × 125 mm / 50 mm | |
| Performances | Lifting | 16 s |
| Lowering | 12.4 s | |
| Extension | 17.3 s | |
| Retraction | 13 s | |
| Crowd | 4.8 s | |
| Dump | 4.0 s | |
| Engine | Engine brand | Yuchai (optional) |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4J22T‑115 | |
| Number of cylinders / Capacity of cylinders | 4 ‑ 4400 cm³ | |
| I.C. Engine power rating ‑ Power | 114 Hp / 85 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 9930 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 40 km/h | |
| Parking brake | Automatic air‑cut brake | |
| Service brake | immersed multi‑discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 150 L/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 170L | |
| Fuel tank | 195L | |
| Noise and vibration | Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 106 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |

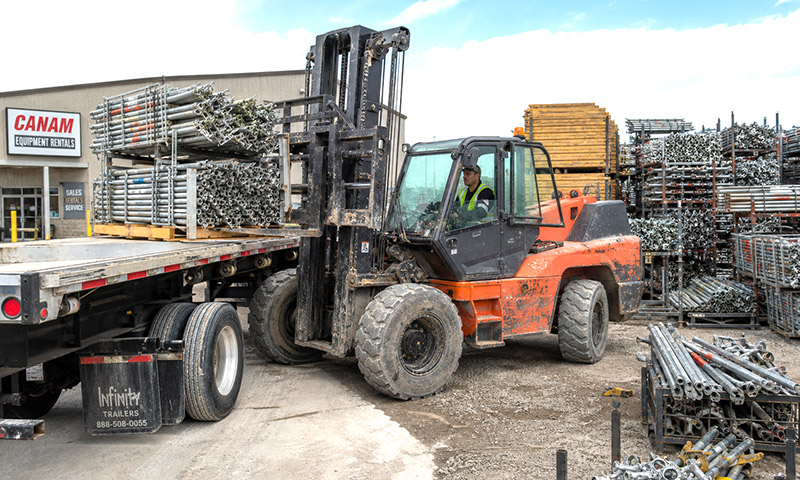

At a logistics hub, a HAMAC FD100-RT 10 ton rough terrain forklift is used to handle heavy palletized
