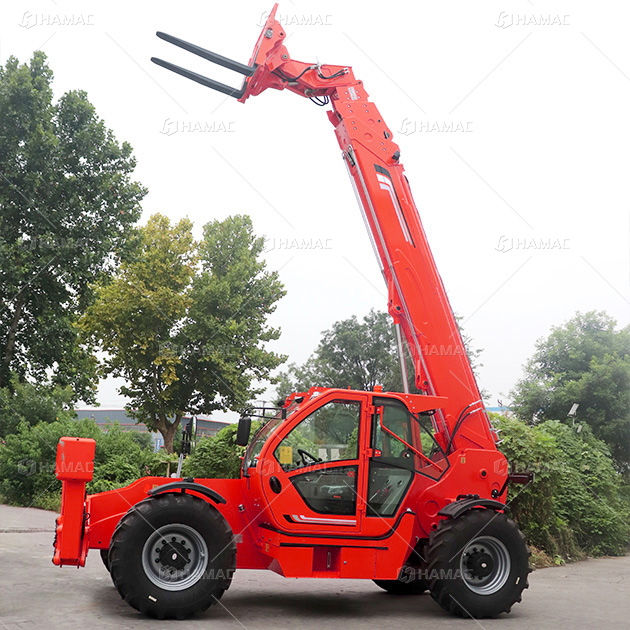

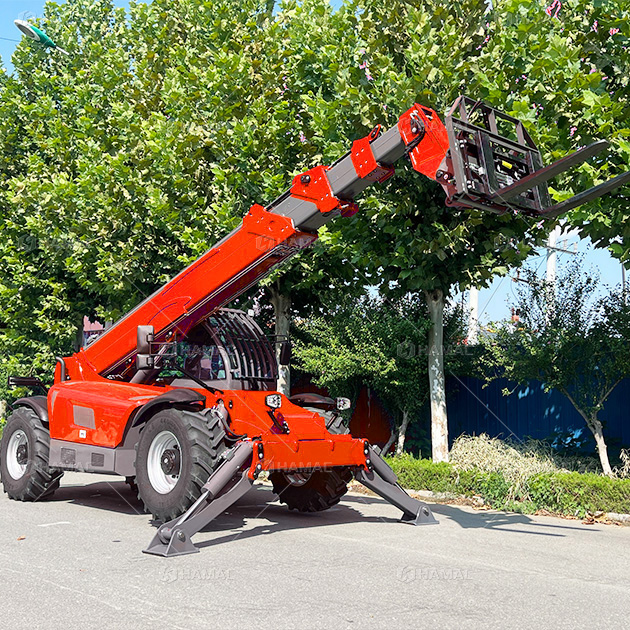

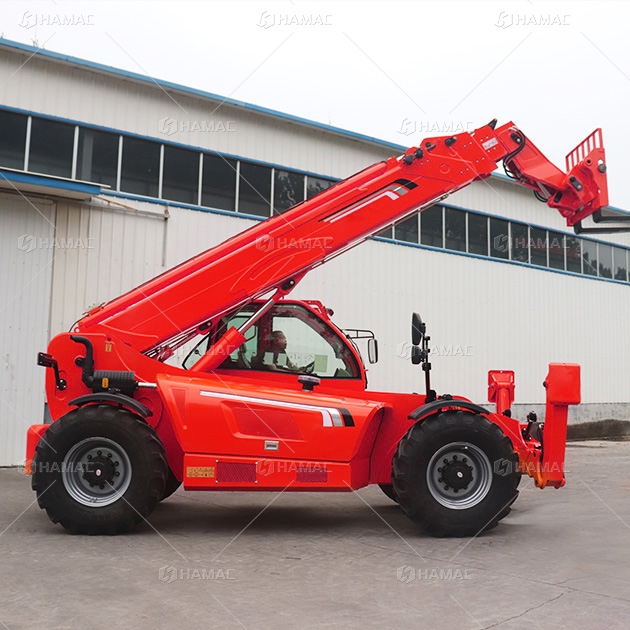

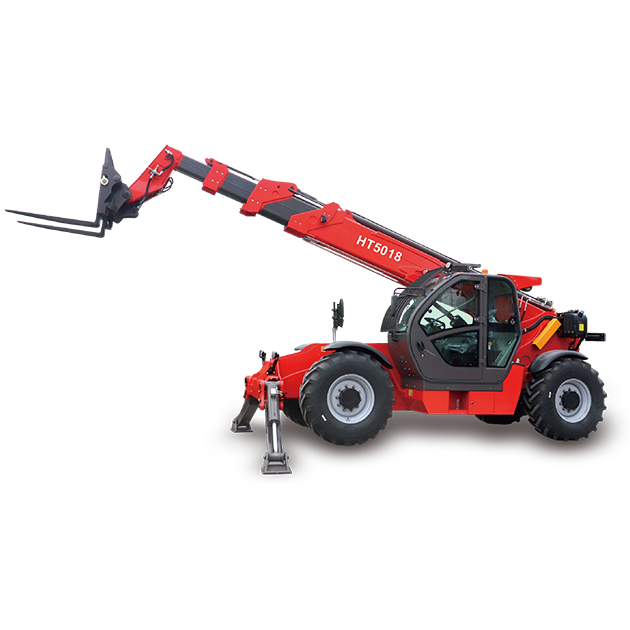

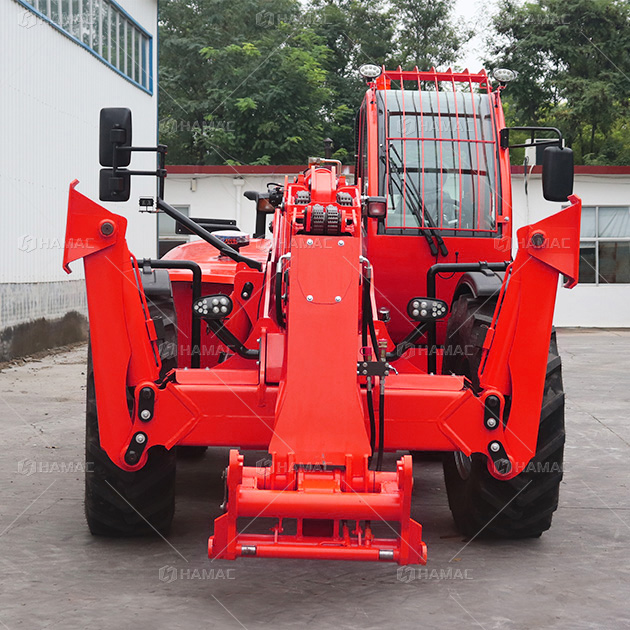

The HAMAC HT5018 is a 5 ton rough‑terrain telehandler with 18 m lift height, built to handle heavy materials on demanding construction and industrial projects. Its telescopic boom delivers the reach needed to place dense pallets, precast elements and large equipment at upper‑floor levels, high façades and tall racks from firm ground positions. A robust 4WD powertrain, strong axles and engineered boom control help maintain stability and productivity when lifting near capacity at extended reach.
Using HAMAC’s quick‑attach system, the HT5018 telehandler can work with forks, buckets, lifting hooks and man baskets, so one machine can cover truck unloading, site material transfer and many everyday lifting tasks that previously needed a crane or loader. It fits perfectly into fleets serving large commercial builds, industrial plants and infrastructure projects where high capacity, long reach and reliable rough‑terrain performance are essential. For rental and contractor fleets, HT5018 offers strong utilization and a high return on investment as a core heavy‑duty telehandler size.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 5000 kg |
| Max. lifting height | 17.55 m | |
| Max. outreach | 11.20 m | |
| Weight and dimensions | Overall length to carriage | 6.40 m |
| Length to face of forks | 7.62 m | |
| Min transport size | 6.30 m | |
| Overall width | 2.35 m | |
| Track width | 1.95 m | |
| Overall height | 2.65 m | |
| Wheelbase | 3.60 m | |
| Ground clearance | 0.38 m | |
| Overall cab width | 0.84 m | |
| Tilt‑up angle | 12 ° | |
| Tilt‑down angle | 90 ° | |
| External turning radius (over tyres) | 4.10 m | |
| Unladen weight (with fork) | 13800 kg | |
| Tires type | Tubeless | |
| Standard tires | 440/80‑24 | |
| Forks length/ width/ section | 1220 mm × 125 mm / 50 mm | |
| Performances | Lifting | 35 s |
| Lowering | 35 s | |
| Extension | 29 s | |
| Retraction | 17 s | |
| Crowd | 9 s | |
| Dump | 9 s | |
| Engine | Engine brand | Yuchai (optional) |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4J22T‑125 | |
| Number of cylinders / Capacity of cylinders | 4 ‑ 4400 cm³ | |
| I.C. Engine power rating ‑ Power | 122 Hp / 91 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 40 km/h | |
| Parking brake | Automatic air‑cut brake | |
| Service brake | immersed multi‑discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 150 L/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 170L | |
| Fuel tank | 195L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
